STI Global ReSet Indoor Only Key-to-Reset Push Button with Running Man Icon, No Cover, Green

$49.73
SKU: STIGLR101RMEN

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The STI Global ReSet Indoor Only Key-to-Reset Push Button, Green, will simulate broken glass activation when pressed but without having to break glass. This unit is resettable, allowing users to press the button to alert an alarm and/or to provide authorized exits in case of an emergency. When pressed, a yellow and black indicator flag will drop, indicating activation. To reset the unit, a special key inserts at the bottom; and because there's no broken glass when used, there's no maintenance needed to replace broken glass. This unit comes in the color green and has a running man icon at the top. It's made out of durable polycarbonate material and fits North American single-gang, double-gang and four square electrical boxes, and European electrical boxes.

  • NoTouch infrared wave action
  • Allows user to open a protected door without the touch of a button
  • To open, person waves hand in front of the IR switch
  • Helps reduce the spread of germs
  • Adjustable relay latch 0.5~20 second
  • Faceplate constructed of medical/food grade 304 stainless steel
  • Dual color status LED (green/red)
  • Form "C" dry contact, 0.5A @120VAC, 1A @24VDC
  • 5 in H x 3.4 in W x 1.45 in D

Why You Would Use This Product:

The STI Global ReSet Indoor Only Key-to-Reset Push Button is ideal for buildings such as schools, office buildings, warehouses, and others where activation of an alarm to signal an emergency or allow authorized exits is needed.

In The Box:

  • EnviroArmour NEMA Polycarbonate Enclosure, Translucent
  • Manual

Tech Specs

  • Part Number: GLR101RM-EN
  • Cover: Polycarbonate

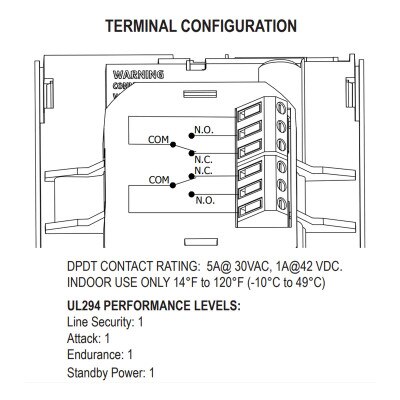

  • Relay Output: 2 Form "C" contacts rated 5A @ 30VAC
  • Relay Contact Rating: 1A @ 42VDC
  • Dimensions: 5.43(H) x 4.13(W) x 1.31(D) inches
  • Mounting Plate: fits to U.S. single-gang, double-gang and four-square electrical boxes, and European single-gang electrical box
  • Rated: UL/cUL Listed, ADA Compliant
  • Warranty:
    • 3 year guarantee against breakage of polycarbonate in normal use
    • 1 year on electromechanical and electronic components
