STI Single Channel Slave Receiver

$47.12
SKU: STI34098

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

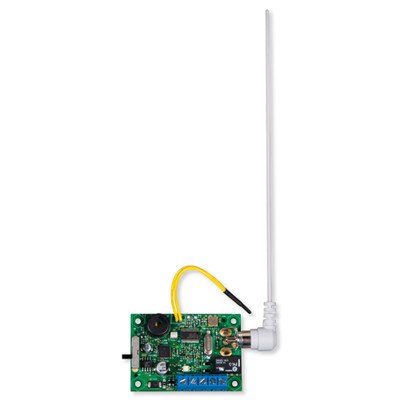

The Single Slave Receiver connect to a single STI sensor or transmitter to a third party system or control panel. Uses wired contacts to create wireless sensor zones.

Features:

  • Form "C" relay contacts interconnect sensors with another system
  • Works in conjunction with a control panel
  • 1000 foot range (line of sight)
  • 12 VDC operation
  • FCC and IC Compliant

In The Box:

  • Single Slave Receiver

NOTE: STI-34098 receives signal from only one transmitter. Attempting to program a second transmitter will delete original transmitter.

Tech Specs

  • Part Number: STI-34098
  • Operating Voltage: 12 VDC; 16mA
  • Standby Voltage: 12 VDC; 10mA
  • Resistive Contact Ratings: 30 AC/DC, 1A
  • Warranty: 1 year
