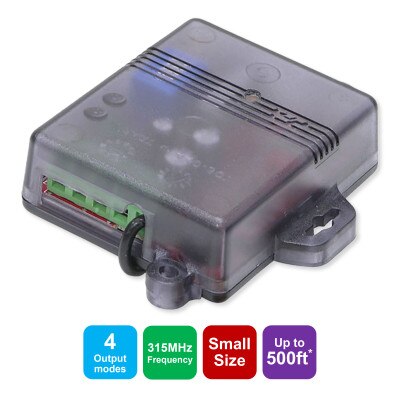

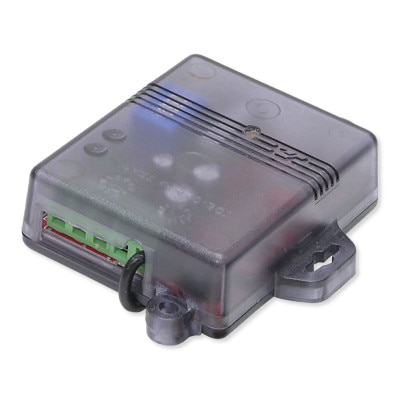

Seco-Larm ENFORCER 1-Channel Miniature RF Receiver with Relay Output
Product Description
The Seco-Larm ENFORCER 1-Channel Miniature RF Receiver with Relay Output can be used for various applications, such as allowing you to use the same transmitter to open or close a gate or a garage door. It's compatible with all Seco-Larm 315 MHz Enforcer transmitters (code-hopping and fixed-code) and can learn the codes of up to 15 different transmitter buttons.
- Can control garage doors, gates, etc.
- Four programmable relay output modes: 4-Second momentary, 1-second momentary, toggle, and validity outputs
- Flexible operating voltage: 11-24 V AC/DC (16 to 24 VAC/DC must cut LP4)
- Works with all 315MHz Enforcer transmitters both fixed-code and code-hopping (CODEBUMPTM)
- LED Indicates RF reception, learn mode entered, transmitter learned, and memory cleared
- Mode switches for easy transmitter learning
- Dimensions: 33/16" x 29/16" x 3/4" (80 x 65 x 19 mm)
In The Box:
- 1-Channel Miniature RF Receiver
- Manual
Tech Specs
- Part Number: SK-910RAQ
- UPC: 676544003458
- Type: WIRELESS – 1-Channel Miniature RF Receiver Relay Output

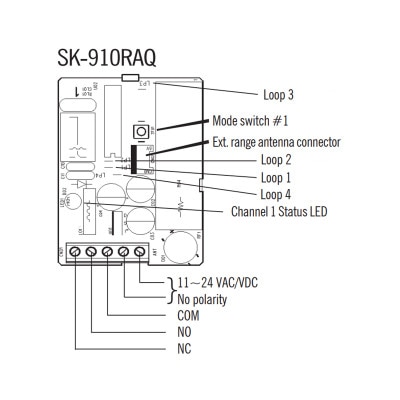

- Operating Voltage: 11-24 V AC/DC (16~24 VAC/DC must cut LP4)
- Output Mode: 3A Form 'C' relay (NO/NC/C)
- Current Draw: 5mA standby, 50mA LED flashing @ 12VDC
- Output Type: Transistor GND x 1, 5A@12VDC
- Transmitter: Compatible with all ENFORCER 315MHz transmitters
- Dimensions: 3-3/16" x 2-9/16" x 3/4" (80 x 65 x 19 mm)
- Certifications: FCC, RoHS
- Warranty: 1 Year
