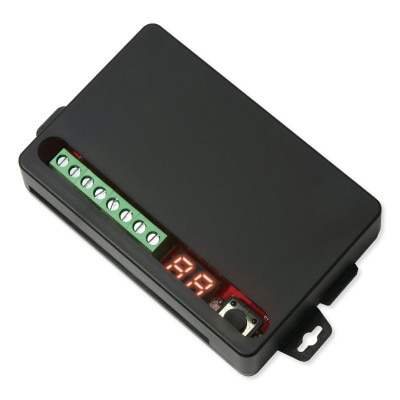

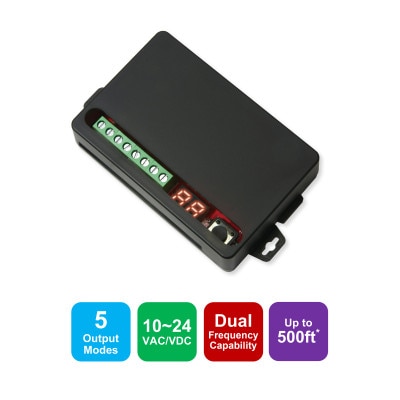

Seco-Larm ENFORCER 2-Channel RF Receiver

$40.48
SKU: SESK910RD2

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Seco-Larm ENFORCER 2-Channel RF Receiver enables remote control of home automation applications, garage doors, lights, motorized gates, lifts, and other devices from up to 500 feet away or up to 1,000 feet when paired with the Extended Range Antenna (sold separately). It supports both fixed-code and code-hopping Seco-Larm transmitters, allowing you to customize access securely. Each channel can learn up to 15 transmitter button codes, while an LED display shows RF signal received, general status, number of codes programmed, and code learning/deleting messages.

  • Can simultaneously receive 315 and 433.92MHz signals with optional Extended Range Antenna
  • Range of up to 500 ft (150m), extendable to 1,000ft (300m) with Extended Range Antenna
  • Each channel is independently programmable with support for up to 15 transmitter button codes
  • Simple pushbutton programming with no jumpers or switches needed
  • Offers 5 output modes per channel: timed pulse (0.599 sec), timed pulse (199 min), toggle, latch, and follow (validity)
  • Compatible with all ENFORCER SK-series transmitters of matching base frequency and optional Extended Range Antenna frequency

Why You Would Use This Product:

The Seco-Larm ENFORCER 2-Channel RF Receiver is ideal for anyone looking to simplify and enhance control over entry points and automation systems. Use it to remotely open your driveway gate, manage access to a storage area, or control lighting in hard-to-reach locations, all with a single receiver. With its long-range capability, you can easily manage these functions from a distance, making it perfect for larger properties. The secure code-learning technology ensures only your authorized transmitters can communicate with the receiver, giving you peace of mind and reliable access control.

In The Box:

  • 2-Channel RF Receiver
  • Manual

Tech Specs

  • Part Number: SK-910RD2
  • UPC: 676544023234
  • Operating Frequency: 315MHz
  • Memory Capacity: 15 per channel
  • Operating Voltage: 10~24 VAC/VDC
  • Operating Current:
    • Standby: 16mA@12VDC, 12mA@24VDC
    • Active: 60mA@12VDC, 50mA@24VDC (both per channel)
  • Relay Output Modes:
    • Type: Independent, sequence, access control
    • Modes: .05~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
  • Relay Contacts:
    • Number: 2
    • Rating: Form C 10A@14VDC
  • Connectors: Screw terminals, +, -, with NO/NC/COM per relay
  • Digital Display: 2-digit, 7-segment LED
  • Operating Humidity: 5~95%, non-condensing
  • Operating Temperature: 32° to 167°F (0° to 75°C)

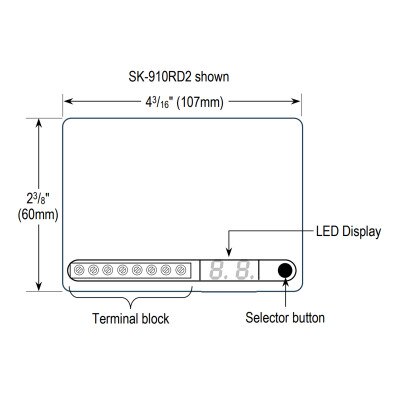

  • Dimensions: 4-3/16 x 7/8 x 2-3/8 inches (107 x 23 x 60 mm)
  • Certifications: FCC, IC, RoHS
  • Warranty: 1 Year
