  • Seco-Larm ENFORCER NVR & Camera Kit with 4K 4-Channel NVR, 4 IP 5MP Turret Cameras, 2TB HDD

Seco-Larm ENFORCER NVR & Camera Kit with 4K 4-Channel NVR, 4 IP 5MP Turret Cameras, 2TB HDD

$517.45
SKU: SEDRNK10404

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

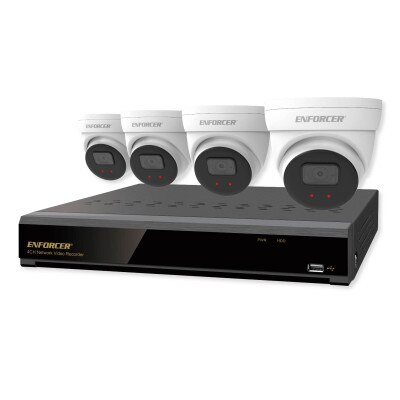

The Seco-Larm ENFORCER NVR and Camera Kit, 4K 4-Channel NVR + 4 IP 5MP Cameras + 2TB HDD is a surveillance system kit that consists of a ENFORCER 4K Network Video Recorder and four ENFORCER IP 5MP 2.8mm Fixed Lens Turret Cameras. The ENFORCER 4K NVR and any connected cameras are controlled from a web browser portal or through the SL Vision app for iOS and Android.

The Seco-Larm ENFORCER 4K Network Video Recorder, 4-Channel, 2TB HDD supports reliable UHD live surveillance and recording for a variety of security and surveillance applications. This network video recorder is compatible with IP cameras capable of capturing footage in up to 8MP (4K) resolution at 30FPS across 4 channels. The NVR's high efficiency video coding optimizes both its storage capacity and its total bandwidth, allowing users to capture footage in the highest quality or FPS possible across all channels without requiring additional storage. The network video recorder includes AI powered features that improve security capabilities and responsiveness, reducing the amount of time necessary to trigger security alerts or to find desired footage respectively. AI powered features include human & vehicle detection, stationary object detection, perimeter intrusion detection, line crossing detection, cross counting, heat mapping, crowd density and queue length detection.

The ENFORCER IP 5MP 2.8mm Fixed Lens Turret Camera captures high-resolution video in resolutions up to 5MP (2880 x 1620) @30FPS for indoor or outdoor installations. The camera utilizes a Power over Ethernet connection for simple cable management and features advanced AI technology to assist surveillance and playback applications such as face & vehicle detection, perimeter intrusion and line crossing detection, heat mapping, and more. The camera also supports H.265, H.264 and MJPEG encoding and video compression, TWDR (true wide dynamic range), Digital Noise Reduction (3DNR), and smart IR technology for superior image quality.

  • NVR supports simultaneous 8MP/4K video streams and playback
  • Plug-and-play PoE with up to four compatible IP Cameras
  • Stream or review footage at adjustable resolutions and FPS (720p@120FPS to 4K@30FPS)
  • 2.8mm Fixed Lens IP Turret Camera captures footage at up to 5MP (2880 x 1620) @30FPS
  • Smart IR technology provides night vision up to 98 feet and Digital WDR ensures clear images in high contrast areas
  • IP cameras rated IP66 for outdoor and indoor installations
  • AI functions including heat mapping, face detection, vehicle and object recognition, and more improve security features during live recordings and simplify reviewing recorded footage
  • Conformant with ONVIF profiles G, S, and T and supports Digital WDR for image compensation in high contrast areas
  • QR Code and Wizard Install assistance provide easy first-time setup
  • Built-in PoE Ports (IEEE 802.3af/at) with Plug-and-Play functionality
  • VGA and HDMI outputs support 4K resolution with compatible cables
  • ONVIF® profile S conformant and tri-stream encoding prevent outside intrusions
  • P2P for simple remote connections using PC or mobile device

Why You Would Use This Product:

The Seco-Larm ENFORCER NVR and Camera Kit provides everything you need to start or expand your own surveillance network. The 4K NVR can handle multiple HD to UHD video streams simultaneously from connected cameras and provides advanced tools to quickly review footage or communicate with smart security systems. The included fixed turret IP cameras are a great addition to any surveillance network and give a perfect example of the strengths and capabilities of the NVR.

SL Vision App

The SL Vision app for iOS and Android provides you with a seamless and easy-to-use solution at your fingertips for all your video surveillance needs. With the SL Vision app and your ENFORCER® NVR, you can easily connect to your NVR from anywhere through your mobile device to view live feeds from your cameras, review recorded footage, and save video clips or snapshots of what you have seen with just a few taps.

In The Box:

  • NVR
  • Mouse
  • Power Supply
  • 3 ft HDMI® Cable
  • 3 ft Internet Cable
  • 4 x Screws for 2.5" HDD
  • 4 x Camera
  • 4 x Camera Mounting Template
  • 4 x Weatherproof Connector
  • 12 x Mounting Screws
  • 2 x Manuals

Tech Specs

  • Part Number: DRN-K104-04
  • UPC: 676544022855

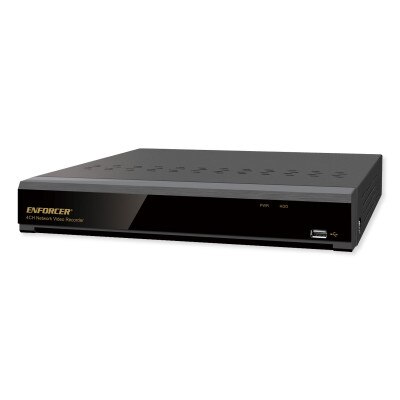

Seco-Larm ENFORCER 4K Network Video Recorder, 4-Channel, 2TB HDD (DRN-104-2TB)

Video

  • Resolution: 8MP (4K), 5MP, 2MP (1080p), 1.3MP (960p), 1MP (720p)
  • Incoming Bandwidth: 50Mbps
  • Outgoing Bandwidth: 48Mbps
  • HDMI Output: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160 (4K)
  • VGA Output: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
  • Frame Rate: 4K: Up to 30FPS, 4MP: Up to 60FPS, 2MP: Up to 120FPS
  • Compression: H.265+, H.265, H.264+, H.264
  • AI: Support
  • Playback Functions:
    • Fast forward / backward (2x, 4x, 8x, 16x)
    • Slow forward (1/2x, 1/4x, 1/8x, 1/16x)

User Interface:

  • Local: UI5.0
  • Web: IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above

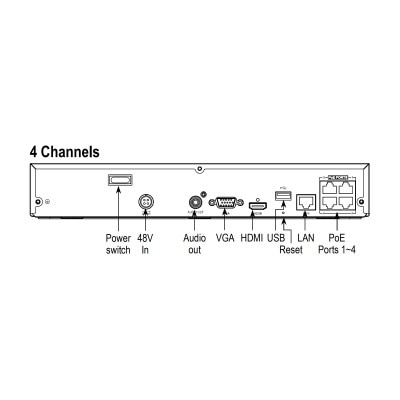

Auxiliary Interface

  • HDMI Output: 1 Output
  • VGA Output: 1 Output
  • PoE Input: 4 x RJ45
  • USB: USB 2.0 x 1 front & 1 rear
  • Alarm I/O: None
  • Included HDD: 2TB SATA
  • Internal Storage Capacity: 1 SATA HDD, up to 10TB

General

  • Power Supply: 48VDC@1.2A
  • Power Consumption: 5W
  • Dimensions (WxDxH): 8-15/16" L x 11-11/16" W x 2-1/16" H (227 x 300 x 53 mm)
  • Operating Temperature: 32 to 104°F (0 to 40°C)
  • Humidity: Less than 90% Relative Humidity
  • Ratings and Certifications: FCC
  • Warranty: 3 Years

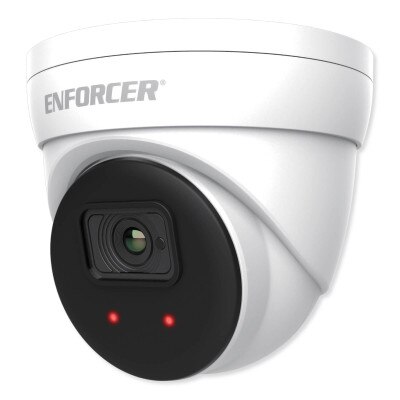

Seco-Larm ENFORCER IP 5MP 2.8mm Turret Camera (EV-N2506-2W4WQ)

Camera

  • Sensor: 1/2.7" 5MP SmartSens CMOS
  • Effective Pixels: 2880(H) x 1620(V)
  • Scanning System: Progressive Scan
  • Electronic Shutter Speed: Auto, Manual; 1/5 s to 1/20,000 s
  • Minimum Illumination: Color: 0.1 lux at F1.2 (AGC on), 0 Lux with IR on
  • IR Distance: Distance up to 98' (30m)
  • IR On/Off Control: Auto, Manual
  • IR LEDs: 2 x 850nm LEDS

Lens

  • Lens Type: Fixed
  • Focal Length: 2.8mm
  • Maximum Aperture: F1.6
  • Field of View:
    • Horizontal: 110°
    • Vertical: 58°
    • Diagonal: 133°

Video

  • Compression: H.265, H.264
  • Streaming Capability: Triple (3) streams
  • Resolution: 2880 x 1620, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 720p (1280 x 720)
  • Bit Rate Control: CBR/VBR
  • Bit Rate:
    • Main Stream: 256 to 8192 Kbps
    • Sub Stream: 128 to 4096 Kbps
    • Mobile Stream: 8 to 1536 Kbps
  • Backlight: Disable (default), BLC, HLC, True WDR
  • White Balance: Auto
  • Gain Control: Auto
  • Noise Reduction: 3D DNR
  • Smart IR: Support
  • Image Rotation: 0", 180"
  • Mirror: Disable, vertical, horizontal, all
  • Privacy: Masking Off, on (4 areas, rectangle)
  • Region of Interest: Support

Network

  • Ethernet: RJ45
  • Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
  • Interoperability: ONVIF® profiles G, S, and T conformant
  • Auto Register: Support
  • Streaming Method: Multicast
  • Max. User Access: 7
  • Web Viewer: IE, Chrome, Firefox, Edge
  • On-Board Storage: Built in memory slot, Supports up to 512GB MicroSD/SDHC/SDXC

Electrical

  • Power Supply: 12VDC, or PoE (IEEE 802.3af Class 0)
  • Power Consumption: <6W

Environmental

  • Operating Temperature: -40 to 131° F (-40 to 55° C)
  • Operating Humidity: Less Than 95% RH
  • Storage Temperature: -40 to 140° F (-40 to 60° C)
  • IP Rating: IP66 Weatherproof

Construction

  • Casting: Metal
  • Dimensions: (Diameter) 3 15/16"x 3 9/16" (Ø100 x 90 mm)
  • Weight: 13.05-oz (370g)
  • Ratings and Certifications: CE, FCC, RoHS, ONVIF® Profiles G, S, & T conformant, NDAA Compliant
