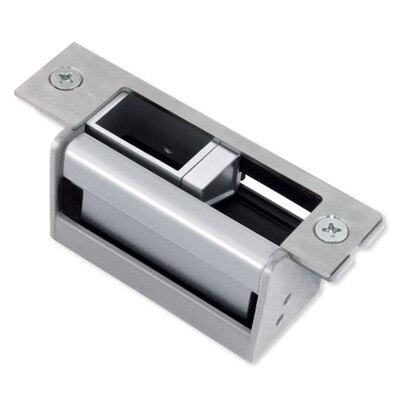

Seco-Larm Electric Door Strike with Vertical Adjustment
Product Description
The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates to match the door lock type. The strike is easily field-configurable for fail-safe or fail-secure applications.
- 12/24 VDC Operation.
- Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
- Accommodates deadbolts up to 1"
- Field selectable for fail-safe or fail-secure

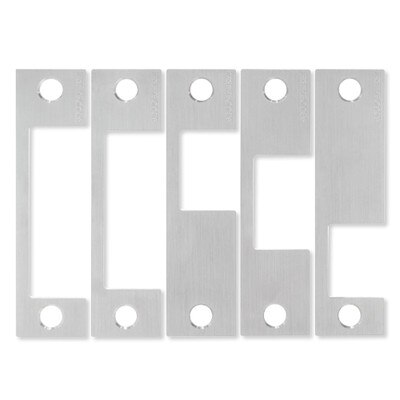

- Includes 5 different stainless-steel faceplates
- Includes trim plate to hide gaps in installation
- Reversible non-handed design
- Tested to 250,000 cycles (UL Tested)
- Low current draw: 300mA@12VDC & 150mA@24VDC
In The Box:
- Electric Door Strike
- 5 x Faceplates
- Mounting Template
- Trim Plate
- 2 x Trim Plate Screws
- 2 x Crimp Connectors
- 2 x Mounting Tabs
- 2 x Wood Screws
- 6 x Machine Screws
- 2 x Faceplate Screws
- 2 x Self-Tapping Screws
- 2 x Electric Connectors
Tech Specs
- Part Number: SD-996C-NUVQ
- Operating Voltage: 12/24 VDC
- Current Draw: 300mA at 12VDC, 150MA at 24VDC
- Operating Temperature: 14° to 113°F (-10° to 45°C)
- Operating Humidity: 0 to 85 percent
- Static Strength: 1,000 pounds
- Latch Throw: 1 inch (25mm) max. with 1/8-inch (3mm) door gap
- Dimensions: 1-13/16 x 1-5/8 x 3-5/16 inches (47 x 42 x 84 mm)
- Approvals: RoHS, UL, CE
- Warranty: 3-Year Limited
