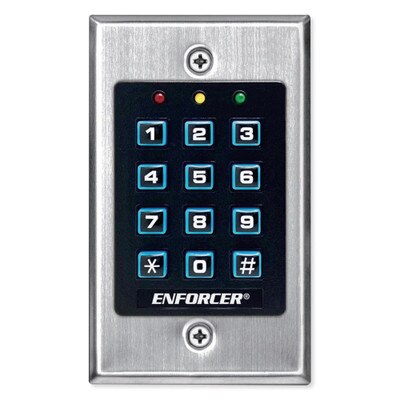

Seco-Larm Enforcer Access Control Keypad
Product Description
- Up to 1,000 possible user codes (4-8 digits)
- 12-button, always-on backlit keypad
- Output: Form C relay, 1A at 30VDC max.
- Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
- Durable and attractive stainless-steel faceplate
- Programmable delayed egress input lets users exit the premises without keying in the code
- EEPROM Memory protects programmed information in case of power loss
- 12~24 VDC/VAC Auto-adjusting operation
- Tamper Output: N.C. Dry contact, 50mA at 24VDC max.
- Mounts to a standard single-gang back box (surface-mount back box included)
- Programmable wrong-code lockout
- Real-time clock to auto-disable access at specific times
- All features are programmed directly from the keypad: No need for an external programmer
In The Box:
- Keypad
- Back box
- 2 x Installation screws
- 2 x Mounting screws
- Diode
- Manual
Tech Specs
- Part Number: SK-1011-SDQ
- Operating Voltage: 12~24 VDC/VAC
- Current Draw (at 12VDC):
- Standby: 15mA
- Keypress: 30mA
- Output 1 Active: 55mA
- Total Max. Current Draw: 90mA
- Output:
- #1 – Form C: 1A at 30VDC
- Tamper: 50mA at 24VDC
- Tamper Output: N.C. Dry Contact
- Egress Input: N.O. Ground
- Operating Temperature: -4° to 158°F (-20° to 70°C)
- Operating Humidity: 5 to 95 percent non-condensing
- Dimensions (including back box): 4-5/8 x 2-7/8 x 1-1/2 inches (117 x 73 x 38 mm)
- Weight: 6 ounces (170g)
- Approvals: RoHS, CE
- Warranty: 1 Year
