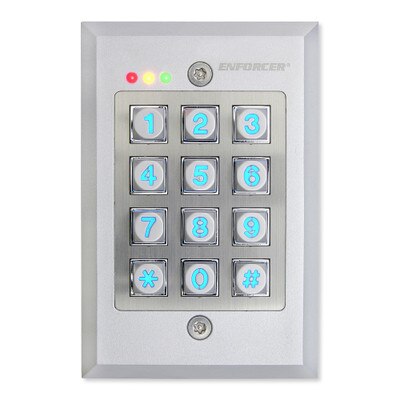

Seco-Larm Enforcer Access Control Keypad, Outdoor, Flush Mount
Product Description
- 12~24 VAC/VDC auto-adjusting operation.
- Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2.
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours).
- Output #1: Form C relay, 1A@30VDC max.
- Output #2: Transistor ground, 100mA@24VDC.
- Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours).
- Tamper output: N.C. Dry contact, 50mA@24VDC max.
- Mounts to standard single-gang back box.
- IP66 Weatherproof rating.
- Keypad illuminates when a button is pressed; backlight can be programmed for
- FULL or AUTO in standby mode.
- All features are programmed directly from the keypad: No need for an external programmer.
- EEPROM Memory protects programmed information in case of power loss.
- Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2.
- Duress code signals a silent alarm if an authorized user is forced to open the door under duress.
- Egress input lets users exit the premises without keying in the code.
- Door sensor input for anti-tailgating operation.
- Interlocking input for connecting to a second keypad.
In The Box:
- Keypad
- (2) Security Screws
- Security Wrench
- Diode
- Manual
Tech Specs
- Part Number: SK-1123-FDQ
- Operating Voltage: 12~24 VDC/VAC
- Current Draw (at 12VDC):
- Standby: 15mA
- Keypress: 40mA
- Output 1 active: 65mA
- Output 1 & 2 active: 66mA
- Total Max. Current Draw: 100mA
- Outputs:
- #1 – Form C: 1A at 30VDC
- #2 – Transistor Ground: 100mA at 24VDC
- Duress: 100mA at 24VDC
- Interlock: 100mA at 24VDC
- Tamper: N.C. Dry Contact: 50mA at 24VDC max.
- Inputs:
- Egress: N.O. Ground
- Door Sense: N.O. Ground
- Door Inhibit: N.O. Ground
- Operating Temperature: -4° to 158°F (-20° to 70°C)
- Operating Humidity: 5 to 95 percent non-condensing
- IP Rating: IP66
- Dimensions: 4-3/4 x 3-1/8 x 1-13/16 inches (120 x 80 x 46 mm)
- Weight: 16.2 ounces (460g)
- Approvals: FCC
- Warranty: Limited Warranty
