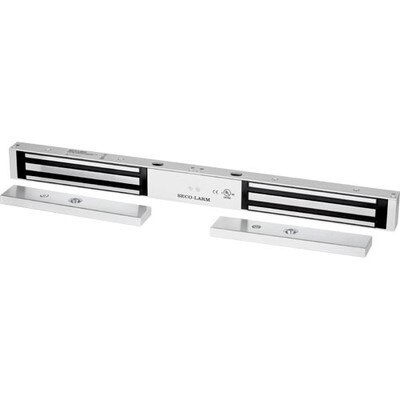

Seco-Larm Enforcer Double Door Electromagnetic Lock, Bond Sensor, 600 Lbs.
Product Description
The E-941DA series of electromagnetic locks is the ideal way to secure double doors against unauthorized entry. When power is applied to the electromagnetic locks, it creates an extremely strong magnetic field. The electromagnets are strongly attracted to the steel armature plates which are mounted on the protected doors. Once the electromagnets are deactivated, the secured doors will open and close normally without any residual magnetism.
- Anodized aluminum housing (US 28).
- 12 or 24 VDC (selectable).
- No residual magnetism.
- Adjustable mounting bracket.
- MOV surge protection.
- Complete mounting hardware for typical installations.
- "L", "Z" and "U" brackets available for easy mounting.
- Detachable face plate.
- UL and ULC listed.
- CE listed.
- RoHS compliant.
Built-in dual-color status LEDs and bond sensors with relays (one per door / 3A at 12VDC) to show locking status of each door:
- Green: Door is closed and locked
- Red: Door not closed and/or locked
- Off: Door in use/no power
In The Box:
- 1 x Mounting plate
- 1 x Electromagnet
- 2 x Armature plate
- 2 x Armature screw
- 4 x Steel washers
- 2 x Rubber washer
- 2 x Door spacer
- 2 x Sexnut bolt
- 4 x Guide pins
- 8 x Long self-tapping screws
- 4 x Short self-tapping screws
- 4 x Hex-head mounting screws
- 4 x Tamper caps
- 1 x Allen wrench
Tech Specs
- Holding Force: 600 pounds (272kg)
- Operating Voltage: 12 or 24 VDC ± 10 percent
- Current Draw: 500mA at 12VDC, 250mA at 24VDC
- Temperature: 14° to 131° F (-10° to 55° C)
- Magnet Size: 19-11/16 x 1-5/8 x 1 inches (500 x 42 x 25 mm)
- Armature Size: 7-1/4 x 1/2 x 1-1/2 inches (185 x 12 x 38 mm)
- Certification: UL, ULC, CE
- RoHS Compliance: Yes
- Weight: 9 pounds (4kg)
