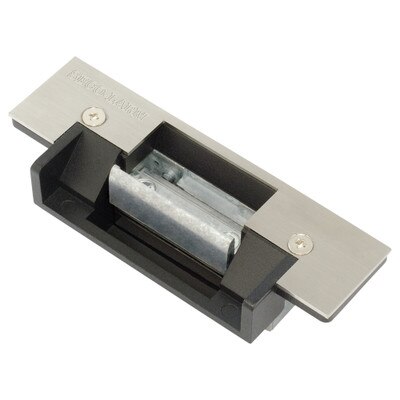

Seco-Larm Enforcer Electric Door Strike with Horizontal Adjustment
Product Description
1/4-inch Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc.
- Unique design accommodates both wood and metal doors
- Fail-secure operation
- Reversible for right or left-handed doors
- Durable stainless-steel faceplate
- Miniature lock body for easier installation
- Corrosion-resistant case and moving parts
- Complete mounting hardware included
- Screw terminals for ease of wiring
- Operating Voltage: 8~16VAC/12VDC
- 1,000-pound (453kg) Jaw strength
- Tested to 500,000 cycles
- Current Draw: 750mA at 12VDC
- ANSI Faceplate
In The Box:
- Door strike
- 2 x Mounting tabs
- 2 x Machine screws (narrow)
- Mounting plate
- Mounting template
- 2 x Wood screws
- 4 x Machine screws
- 2 x Black anchor nuts
- Manual
Tech Specs
- Part Number: SD-995A-A1Q
- Operation: Fail-secure
- Operating Voltage: 8~16 VAC/12VDC
- Current Draw:
- 16VAC: 800mA
- 12VDC: 750mA
- Max. Latch Throw: 5/8-inch (16mm)
- Latch Depth: 3/4-inch (19mm)
- Keeper Depth: 2-1/32 inches (16.8mm)
- Strike Depth: 1-1/2 inches overall (38mm)
- Design: Reversible, Non-Handed
- Adjustable Keeper: Max. 1/4-inch (6mm)
- Operating Temperature: 14° to 113°F (-10° to 45°C)
- Weight: 10.3 ounces (292g)
- Faceplate Dimensions: 4-7/8 x 1-1/4 x 1/8 inches (124 x 32 x 3.2 mm)
- Approvals: CE, RoHS
- Warranty: 3 Years
