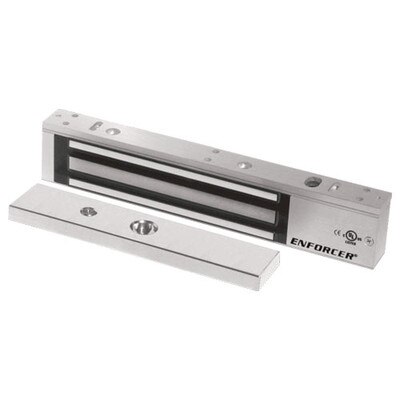

Seco-Larm Enforcer Maglock, Bond Sensor, 600 Lbs.
Product Description
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- "L" bracket and "Z" brackets available for easy mounting
- Face plate is detachable
- UL and ULC listed
- CE listed
- RoHS compliant
- Built-in dual-color status LED and bond sensor to show locking status:
- Green – Door is closed and locked
- Red – Door not closed and/or locked
- Off – Door in use / no power
- Bond sensor output: 3A@12VDC
Tech Specs
- Holding force: 600-lb (272kg)
- Current draw: 500mA@12VDC, 250mA@24VDC
- Operating voltage: 12 or 24 VDC±10%
- Temperature: 14º ~ 131º F (-10º ~ 55º C)
- Magnet size: 9-7/8 x 1-1/16 x 1-5/8 inch (250 x 27 x 42 mm)
- Armature size: 7-1/4 x 1/2 x 1-1/2 inch (185 x 12 x 38 mm)
- Certification: UL, ULC, CE
- RoHS compliance: Yes
- Bond sensor: Yes
- Status LED: Yes
