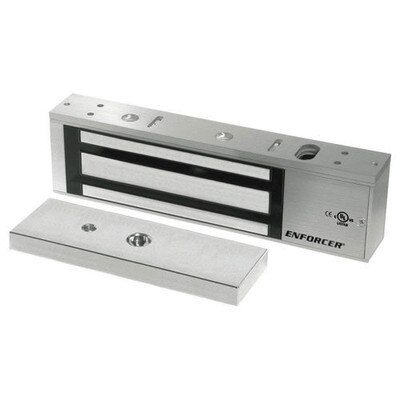

Seco-Larm Enforcer Maglock, 1,200 Lbs.
Product Description
The E-941SA series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
- Anodized aluminum housing.
- Dual voltage: 12 or 24 VDC (selectable).
- No residual magnetism.
- Detachable faceplate.
- Adjustable mounting bracket.
- MOV surge protection.
- Complete mounting hardware included.
- Angle brackets, "Z" brackets, and glass door brackets available for easy mounting. (Not all brackets are available for every model. Please see brackets page for details.)
- UL and ULC listed.
- CE listed.
Tech Specs
Parts List
- Mounting plate
- Electromagnet
- Armature plate
- Armature screw
- (2) Steel washers
- Rubber washer
- Door spacer
- Sexnut bolt
- (2) Guide pins
- (4) Long self-tapping screws
- (2) Short self-tapping screws
- (2) Hex-head mounting screws
- (2) Tamper caps
- (2) Allen wrenches
- Magnet Size: 10-1/2 x 1-5/8 x 2-5/8 inches (268 x 42 x 67mm)
- Armature Size: 7-1/4 x 5/8 x 2-3/8 inches (185 x 16 x 61mm)
- Holding Force: 1,200 pounds (545kg)
- Current Drain: 500mA/12VDC, 250mA/24VAC
- Voltage Tolerance: ± 10 percent
- Temperature: -13 to 131 degrees F (-25 to 55 degrees C)
- Weight: 10.46 pounds (5kg)
- Certifications: UL, ULC, UL 864 (Fire Alarm Systems), UL 294 (Access Control System Units), UL 1034 (Burglary-Resistant Electric Lock Mechanism), USA only, CE
