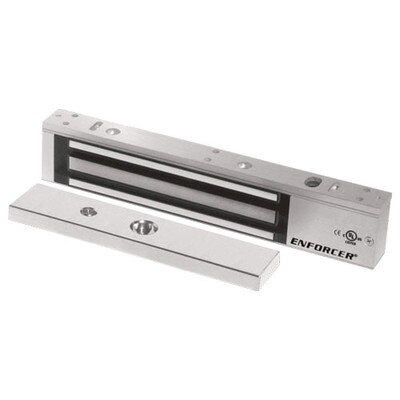

Seco-Larm Enforcer Maglock, 600 Lbs.
Product Description
- Anodized aluminum housing (US 28).
- 12 or 24 VDC (selectable).
- No residual magnetism.
- Adjustable mounting bracket.
- MOV surge protection.
- Complete mounting hardware for typical installations.
- "L" bracket and "Z" brackets available for easy mounting.
- Detachable face plate.
- UL, UL 10C, UL 294, and UL 1034 listed.
- CE listed.
- RoHS compliant.
Tech Specs
- Part Number: E-941SA-600
- Holding force: 600 pounds (272kg)
- Operating voltage: 12 or 24 VDC, ±10 percent
- Current draw: 500mA at 12VDC, 250mA at 24VDC
- Temperature: 14 to 131° F (-10 to 55° C)
- Magnet size: 9-7/8 x 1-1/16 x 1-5/8 inches (250 x 27 x 42 mm)
- Armature size: 7-1/4 x 1/2 x 1-1/2 inches (185 x 12 x 38 mm)
- Certification: UL, UL 10C, UL 294, UL 1034, UL 864 (Fire Alarm Systems)CE
- RoHS compliant: Yes
- Weight: 4 pounds, 6 ounces (2kg)
