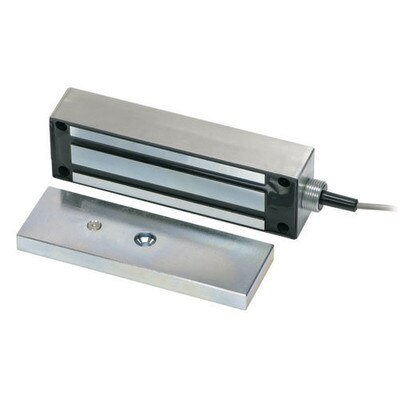

Seco-Larm Enforcer Gate Maglock, 1,300 Lbs.
Product Description
- For outdoor sliding and swinging electric gates.
- Lock is water and vandal resistant.
- Lock has attractive stainless-steel finish.
- Maintenance-free, factory-sealed design.
- Holding force – 1300-lb (545kg).
- 12 or 24 VDC (selectable).
- No residual magnetism.
- MOV surge protection.
- "L" bracket and "Z" brackets available for easy mounting.
- UL and ULC listed.
- CE listed.
Tech Specs
- Holding Force: 1,300 pounds (545kg)
- Operating Voltage: 12 or 24 VDC ± 10 percent
- Current Draw: 500mA at 12VDC, 250mA at 24VDC
- Temperature: 14 to 131° F (-10 to 55° C)
- Magnet size: 8 x 2-1/2 x 1-5/8 inches (203 x 63 x 41 mm)
- Armature Size: 7-1/4 x 2-3/8 x 5/8 inches (185 x 61 x 16 mm)
- Weight: 10 pounds 8 ounces (5 kg)
- Cable Length: 6-1/2 Feet (2 meters)
- Certifications: UL, ULC, CE UL for maglock only
