Seco-Larm Enforcer HDMI Extender Over Single Cat5e/6


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

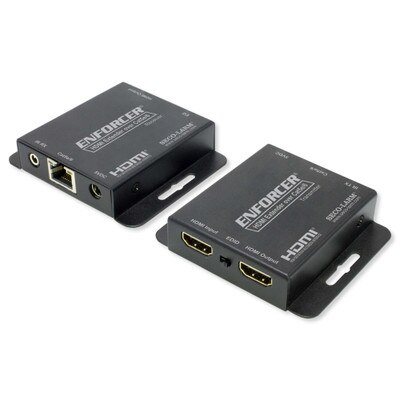

The Seco-Larm Enforcer HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. HDMI formats as large as 1080p can be transmitted up to 164 feet (50m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter. The extender also supports HDMI loop output, EDID management settings, and one way IR control for remotely controlling HDMI sources and displays.

  • Extend HDMI over a single Cat5e/6 cable
  • Supports resolutions from 480i to 1080p with zero signal loss
  • Transmits up to 164 feet (50m) at 1080p over Cat5e/6 cable
  • HDMI Loop output for local HDMI display
  • Plug and play operation – comes as a complete set
  • IR Pass-through for remote control extension and operation
  • EDID Management switch
  • Includes two 5VDC power supplies

In The Box:

  • HDMI Transmitter
  • HDMI Receiver
  • IR Transmitter
  • IR Receiver
  • 2x 5VDC Power Supplies
  • Manual

NOTES: To match the display settings to the source device, be sure to use Extended Display Identification Data (EDID) management settings. It may be necessary to move the EDID Switch to a different position if the system is not displaying a correct image.

Tech Specs

  • Part Number: MVE-AH1E1-01NQ
  • Input Video Signal: 3.3V
  • Input DDC Signal: 5Vp-p (TTL)
  • Maximum Single Link Range: 1080p
  • Deep Color: 24bit
  • Video Formats Supported: High-speed HDMI, HDCP 1.2
  • Audio Formats Supported: LPCM, Dolby-AC3, DTS7.1, DSD
  • Output Video: HDMI
  • Resolutions Supported: 1080p/1080i/720p/576p/576i/480p/480i
  • Range – 1080p: Up to 164 feet (50m)
  • Video Amplifier Bandwidth: 4.95Gbps
  • Video Input Connector: HDMI Type A 19-pin female
  • Maximum Input Cable Length: 24AWG (15m), 26AWG (10m), 28AWG (5m)
  • Video Output Connector: HDMI Type A 19-pin female
  • Maximum Output Cable Length: 24AWG (15m), 26AWG (10m), 28AWG (5m)
  • Cat5e/6 Wiring Standard: T-568B
  • IR Pass-Through Frequency: 30~60 kHz
  • Operating Voltage: 5VDC
  • Power Supply: 1A at 5VDC (2 Adapters) (2.1mm plug)
  • ESD Protection (human body model): ±8kV (Air-gap discharge), ±4kV (contact discharge)
  • Current Draw:
    • Transmitter: 300mA at 5VDC
    • Receiver: 200mA at 5VDC
  • Operating Temperature: 32' to 104' F (0' to 40' C)
  • Operating Humidity: 20 to 90% RH (No condensation)
  • Dimensions: 3-1/8 x 11/16 x 2-5/8 inches (79 x 17 x 67 mm)
  • Weight: 5.3 ounces (150g) Each
  • Credentials: FCC, CE RoHS
  • Warranty: 1 Year
