Seco-Larm Enforcer Hands-Free Video Phone Kit


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

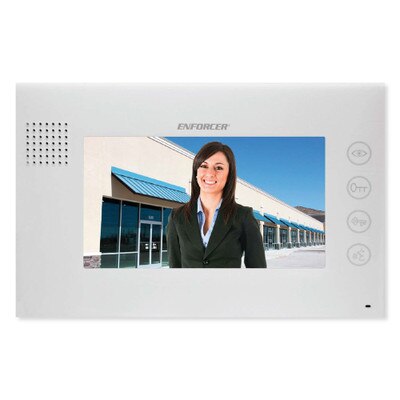

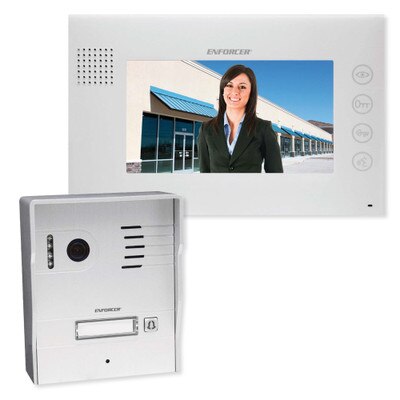

The Seco-Larm Enforcer Hands-Free Video Phone Kit will allow you to answer your front door from another room in your home. This kit includes both a camera and monitor that install with an easy 2-wire connection. The monitor features a 7-inch color TFT display with Talk, Monitor, E-Lock, and Relay Unlock buttons, while the camera features a 1/3" CMOS sensor, 2.1mm lens, 700 TV lines of resolution, and four LEDs for nighttime operation. Additionally, both the camera and monitor have built-in speakers and microphones for two-way communication.

  • Simple 2-wire connection
  • Remotely and securely talk to visitors and unlock doors, gates, etc. from the monitor
  • Easily connect 2 additional monitors and an additional camera
  • The camera has four IR LEDs for nighttime operation
  • Built-in microphone and speaker for hands-free two-way communication
  • Soft-touch button operation (Talk, Monitor, E-Lock, and Relay Unlock)
  • Weatherproof IP55 (camera only)
  • Adjustable color tone, brightness, speaker, and ringer volume
  • 700 TV Lines resolution, large 7" screen

In The Box:

  • Monitor
  • Camera
  • Monitor Bracket
  • AC Power Adapter
  • Camera Bracket
  • 6 x Screws
  • 6 x Screw Anchors
  • 2 x Camera Hex Screws
  • 6 x Wire Connector (2-Wire) – Power
  • Wire Connector (5-Wire) – Camera
  • Diode
  • MOV
  • Hex Wrench
  • Manual

NOTE: The distance between the camera and the farthest monitor should not exceed 230ft (70m).

Tech Specs

  • Part Number: DP-264-1C7Q
  • UPC: 676544021025
  • Credentials: RoHS, CE, FCC
  • Warranty: 1 Year

Hands-Free Video Door Monitor

  • Display: 7" Color TFT
  • Operating Voltage: 18VDC
  • Relock Delay: 5 seconds
  • E-lock Delay: 1 second
  • Weight: 1-lb, 2-oz (560g)
  • Current Draw:
    • Active: 555mA
    • Standby: 20mA
  • Dimensions: 9-1/2 x 6-5/16 x 1 inches(241 x 161 x 25 mm)

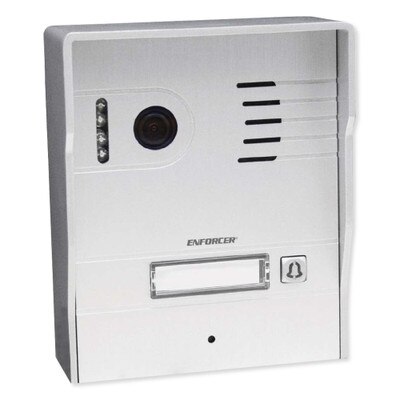

Hands-Free Door Camera

  • Type: Color camera
  • CMOS: 1/3-inch CMOS sensor
  • Resolution: 700 TV lines
  • Lens: 2.1mm
  • Relay output: 3A@30VDC max. dry contact
  • Operating Temperature: -13°~149°F (-25°~65°C)
  • Weight: 1-lb, 6-oz (750g)
  • Current Draw: 150mA
  • Dimensions (without sunshield): 4-7/16 x 5-3/8 x 2-1/16 inches (112 x 136 x 52mm)
