Seco-Larm Enforcer IR Reflective Photoelectric Beam Sensor, 50 ft.
Product Description

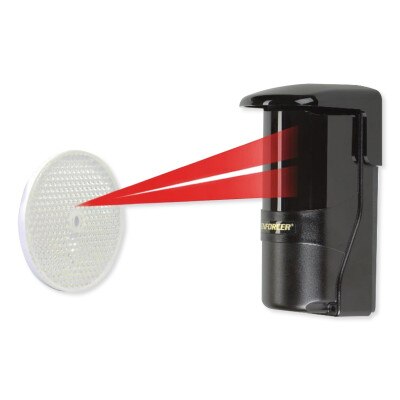

The Seco-Larm Enforcer IR Reflective Photoelectric Beam Sensor, 50 ft. is an infrared sensor that uses reflective photoelectric technology to detect motion that passes between the sensor and its paired reflector. The sensor creates an invisible infrared beam that is reflected back to itself with the help of a reflector mounted up to 50ft away. When something walks between the sensor and the reflector, an alert is triggered and sent to a connected alarm or security panel. The sensor is designed for outdoor use, featuring a weatherproof housing that ensures durability and consistent performance in various environmental conditions. Its adjustable sensing range and sensitivity allows it to fit in various environments, providing flexibility in installation and application. The sensor can be used to monitor gates, hallways, garage doors, perimeters, and more.
- Provides reliable perimeter security by detecting motion that moves through an invisible infrared beam
- Sensor and reflector can be installed up to 50-feet away from each other
- Utilizes reflective photoelectric technology for accurate detection
- Features a weatherproof housing for durability in outdoor conditions
- Adjustable sensing range and sensitivity for customizable security
- Compact design allows for discreet placement
- Compatible with various RF security systems for seamless integration
Why You Would Use This Product
The Seco-Larm Enforcer IR Reflective Photoelectric Beam Sensor, 50 ft. is ideal for anyone looking to enhance the security of their property with a reliable and efficient motion detection system. This sensor can be used to monitor driveways, gardens, warehouses, office buildings, and retail spaces, providing early warning of any unauthorized entry and deterring potential intruders.
In The Box:
- Sensor
- Reflector
- Mounting Bracket
- Sensor Hood
- 4 x Cover Screws
- 2 x Mounting Screws
- Reflector Mounting Screw
- Rubber Ring
- Cable Connector
- Manual
- Removable Terminal Block
- 10KΩ Resistor
Tech Specs
- Part Number: E-931-S50RRGQ
- Type: Reflective photoelectric beam sensor
- Sensing Range: Up to 50 feet (15m)
- Operating Voltage: 12~30DC/ADC, 100mA
- Current Draw: Standby:55mA@12VDC Active:40mA@12VDC
- Response Time: 10ms
- Light Source: IR LED
- LEDs:
- Solid Red: No beam signal, triggered
- Alternating Flash: Poor beam signal
- Solid Green: Good beam signal, properly aligned
- Alarm Output: NO/NC relay, 0.5A at 120VAC, min. 1s
- Tamper Switch: NC switch, 500mA@30VAC/VDC
- Alignment Angle: Horizontal: ±90 degrees; Vertical: ±15 degrees
- Enclosure: Weatherproof IP55
- Operating Temperature: -13° to 131°F (-25° to 60°C)

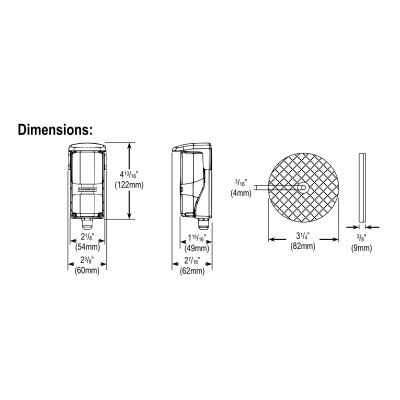

- Dimensions*: 3-3/16 x 7-3/16 x 3-9/16 inches (81 x 182 x 91 mm)
- Weight:
- Sensor: 11.6 ounces (329g) with hood
- Reflector: 5.9 ounces (167g) with hood
- Approvals: ISO 9001, CE, RoHS
- Warranty: 1 Year
