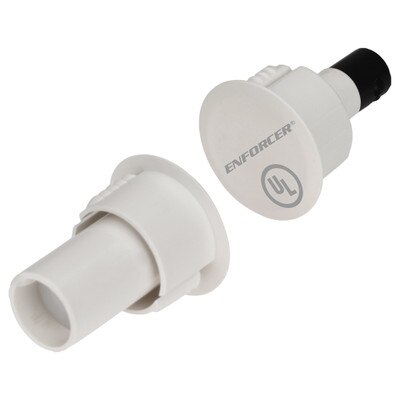

Seco-Larm Enforcer Magnetic Contact, 3/4" Recessed Steel Door, 1" Gap, NC
Product Description
- Used for steel framed doors and windows where space is limited or to avoid unsightly installations.
- Strong one-piece construction.
- Gold-plated terminals for longer life and reliability.
- Screw terminals.
- High-impact ABS plastic.
- Switch and magnet have ribs for securing in holes.
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life.
- For N.C. circuits.
- 1 inch (25mm) Gap.
- Lifetime limited warranty.
Tech Specs
- Part Number: SM-4104-TQ/W
- Circuit Type: Closed loop
- Operation Gap: 1 inch (25mm)
- Color: White
- Material:
- Case: High-impact ABS plastic
- Terminal: Gold-plated
- Contacts: Iridium-plated
- Contact Rating:
- 0.1A at 100VDC (max.)
- 1.0A at 10VDC (max.)
- 10W (max.)
- Temperature: -15° to 160°F (-25° to 70°C)
- Switch Cycles: 50 Million (0.1mA at 5VDC)
- Dimensions:
- Switch: 1-3/16 x 15/16 x 3/8 inches (30 x 24 x 9mm)
- Magnet: 1-3/16 x 15/16 x 1/2 inches (30 x 24 x 13mm)
- Magnet: Rare-earth Neodymium
- Approvals: UL, cUL, RoHS
- Warranty: Lifetime Limited Warranty
