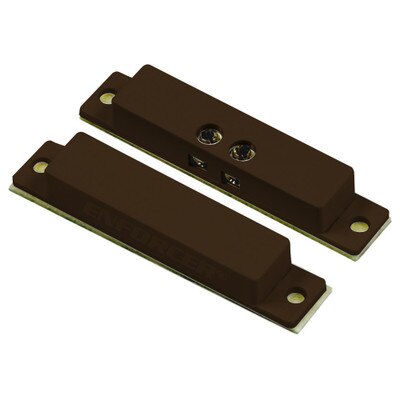

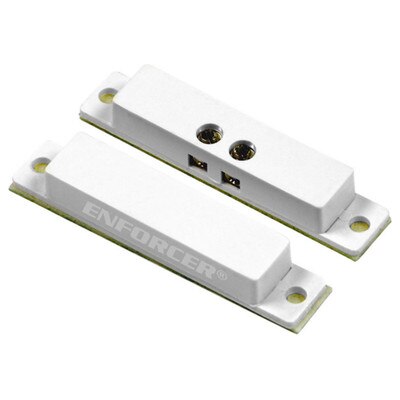

Seco-Larm Enforcer Magnetic Contact, Surface-Mount, 1" Gap
Product Description
Miniature surface-mount magnetic contacts.
- For N.C. circuits.
- 1" (25mm) Gap.
- Screw mount using side tabs or break off tabs for adhesive mount.
- Gold-plated screw terminals for longer life and reliability.
- Tape to cover screw terminals included.
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life.
- Mounting screws and double-sided tape included.
- Lifetime limited warranty.
In The Box:
- Switch
- Magnet
- Mounting screws
- Double-sided tape
Tech Specs
- Part Number: SM-431-TQ
- Circuit Type: N.C.
- Mounting Tabs: Yes, removable
- Material: Case: High-impact ABS plastic
- Terminals: Gold-plated
- Contacts: Iridium-plating
- Contact Rating: 0.1A@100VDC (max); 1.0A@10VDC (max); 10W (max)
- Temperature: -15 to 160°F (-25 to 70°C)
- Switch Cycles: 50 million (0.1mA@5VDC)
- Dimensions:
- Switch: 2 x 3/8 x 1/4 inches (51 x 10 x 6 mm)
- Magnet: 2 x 3/8 x 1/4 inches (51 x 10 x 6mm)
- Magnet Type: Rare-earth neodymium
- Approvals: UL, cUL, RoHS
- Warranty: Lifetime Limited
