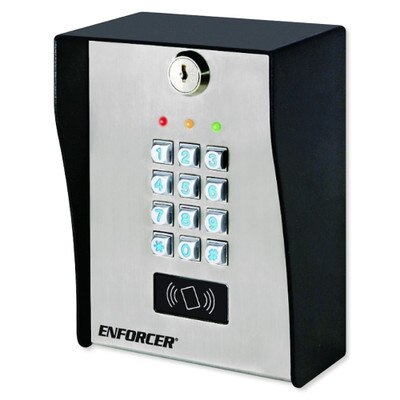

Seco-Larm Enforcer Outdoor Access Control Keypad with Proximity Reader
Product Description
The Seco-Larm Enforcer Outdoor Access Control Keypad with Proximity Reader features rugged vandal-resistant construction with a heavy-duty stainless-steel faceplate and a coated steel backing to withstand the elements. It provides easy and secure access for your home or business with coded entry or proximity cards.
- Built-in proximity reader (125kHz (EM125))
- 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code
- 1,200 Users across 3 Outputs, Codes may be 4 to 8 digits:
- Output 1 – Form C relay, 5A@24VDC, 1,000 users
- Output 2 – Form C relay, 1A@24VDC, 100 users
- Output 3 – Form C relay, 1A@24VDC, 100 users
- Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Super user code gives admin access to keypad
- Up to 50 possible temporary visitor codes, programmable for one-time or limited-time use (1 to 99 hours)
- Real-time clock to auto-disable access at specific times
- 50 duress codes for output 1, 10 for outputs 2 and 3
- Duress code signals a silent alarm if an authorized user is forced to open the door under duress
- All features are programmed directly from the keypad: No need for an external programmer
- Vandal resistant, can be installed on a wall, post, or gooseneck stand
- Tamper output: N.C. Dry contact, 50mA@24VDC max
- Keypad illuminates when a button is pressed; backlight can be programmed for FULL (Dim in standby) or AUTO (OFF in standby) mode
- Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time
- Door sensor input for anti-tailgating operation
- Door-propped-open and Door-forced-open warnings
- EEPROM Memory preserves data in case of power loss
In The Box:
- Keypad with Steel Box
- (4) Mounting Screws
- Mounting Template
- (2) Keys
- (4) Mounting Screw Anchors
- Security Wrench
- Diode
- User Manual
NOTES: No replacement keys available. Please make extra copies of included keys for safekeeping. Proximity cards/tags are sold separately.
Tech Specs
- Part Number: SK-3133-PPQ
- Operating Voltage: 12 to 24 VAC/VDC (auto-adjusting)
- Current Draw at 12VDC:
- Standby: 55mA
- Keypress: 90mA
- Total max. current draw: 220mA
- Outputs:
- #1 Form C: 5A@24VDC
- #2 Form C: 1A@24VDC
- #3 Form C: 1A@24VDC
- Inputs:
- Egress: N.O. Ground
- Door Sensor: N.C. Ground
- Door Inhibit: N.O. Ground
- Proximity Reader Frequency: 125kHz (EM125)
- Proximity Reader Sensing Distance: 1-1/2" (38mm)
- IP Rating: IP66
- Operating Temperature: -4° to 158° F (-20° to 70° C)
- Operating Humidity: 5 to 95% Non-condensing
- Dimensions: 5-1/4 x 7-1/16 x 3-3/8 inches (133 x 180 x 85 mm)
- Credentials: FCC, RoHS
- Warranty: 2 Years
