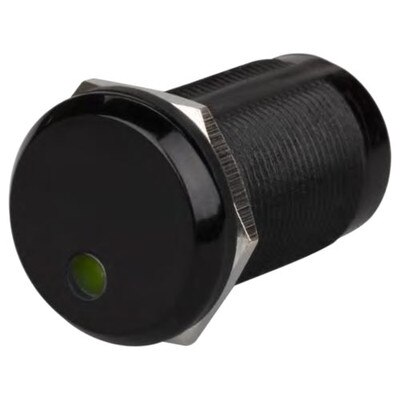

Seco-Larm Enforcer Photoelectric Proximity Sensor
Product Description
The ENFORCER IR Proximity Sensor is a compact sensor that can be programmed to trigger an alarm when an object (such as a valuable possession) is removed from the sensing area or unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor. This flexibility makes the sensor ideal for both anti-theft and access control applications.
- Triggers a warning or locking device when the sensor is triggered.
- Small size allows for a wide range of applications.
- Filters out interference from other infrared sources.
- Form C relay output (1A@30VDC).
- Adjustable output time (1~20 s) or toggle mode.
- Adjustable sensing range 2" to 6" (5~15 cm).
- 12~24 VDC Operation.
- Front panel IP65 weatherproof for outdoor use.
In The Box:
- IR proximity sensor
- Wiring harness
- Hex nut
- O-ring
- Manual
Tech Specs
- Part Number: CS-PD115-PAQ
- Type: IR Proximity sensor
- Sensing Range: 2 to 6 inches (5 to 15 cm)
- LEDs:
- Red: Standby
- Green: Triggered
- Alarm Output: 1A@30VDC
- Output Time: 1~20 seconds or Toggle
- Operating Voltage: 12~24 VDC
- Current Draw: 30mA@12VDC
- Operating Life: 100,000 hours or 1,000,000 uses
- Operating Temperature: 14° to 158°F (-10° to 70°C)
- Dimensions: 1-3/8 x 7/8 x 7/8 inches (35 x 23 x 23 mm)
- Weight: 0.35 oz (10g)
- Warranty: 1 Year
