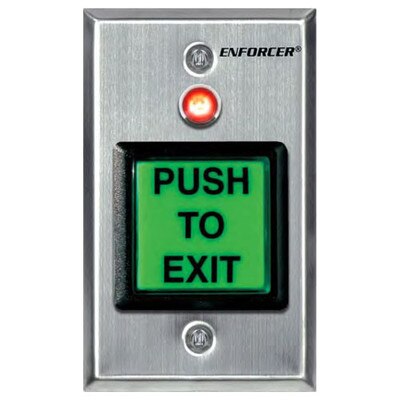

Seco-Larm Enforcer Push-to-Exit Plate, Illuminated (Dual-Color LED) with Timer

Large illuminated pushbutton with caption "PUSH TO EXIT". Same as SD-7202GC-PTQ, but with additional customizable LED status indicator.

The additional LED on the SD-7623-GSTQ serves as a status indicator. It may toggle between "off" and "on" (either red or green) or it may toggle between "red" and "green". As a status indicator, it could indicate that the lock has entered the timed unlock state after the button has been pressed. On doors with a door position monitoring output, the status LED could indicate that the door is unlocked or that the door is opened, returning to standby only after the door has been closed and/or relocked.

• Dual-color green/red LED can be wired for a range of uses, e.g.:
• Switching ON/OFF or changing color when button is pressed
• Changing color when door unlocks
• Always steady ON green or red
• Stainless-steel single-gang plate.
• 12/24 VDC Operation.
• Rated 3A@24VDC.
• Pushbutton LED replacement bulb included.
• Pushbutton LED gives over 50,000 hours of illumination.
• Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates.
• Includes colored 12-inch wire leads with easy-to-attach spade lugs for fast installation.
• Built-in timer with output adjustable from 1~180 seconds.
• Buzzer output for audible status.

In The Box:

• 1 x Request-to-exit plate
• 1 x Resistor for 24VDC
• 2 x Wallplate screws
• 1 x Spare LED bulb
• 2 x Replacement message plates (Spanish, French)
• 2 x Colored leads
• 1 x Installation manual
