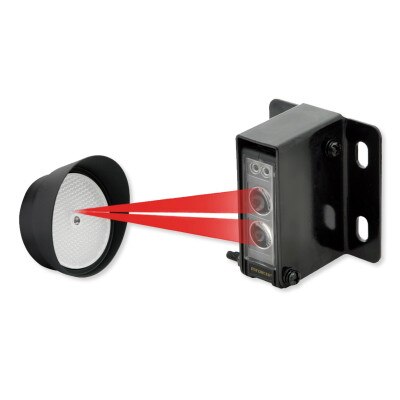

Seco-Larm Enforcer Reflective Beam Sensor with Round Reflector, 45'


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

  • Range: 45ft (14m)
  • Weatherproof (IP66) construction for indoor/outdoor use.
  • Pre-wired 6ft (1.8m) cord.
  • Bracket and mounting hardware included for both sensor and reflector.
  • Adjustable sensing range.
  • Compact size.
  • Monitoring method: 10k-ohm Resistor

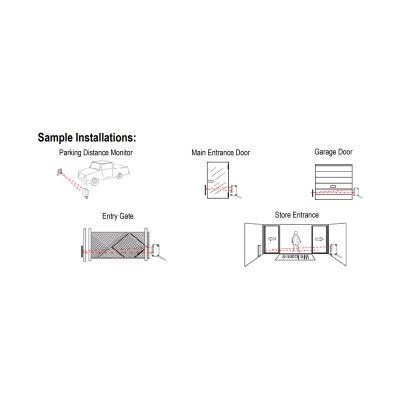

Typical Applications:

  • Sensor for garage doors, outdoor gates or overhead doors.
  • Sensor for industrial automation to detect objects on manufacturing line.
  • Entry detection for store fronts.
  • Assist in measuring parking distance.
  • Alarm sensor.

In The Box:

  • Transmitter/Receiver
  • Sensor Mounting Brackets
  • Round Reflector
  • Reflector Hood
  • 10-Ohm Resistor

Tech Specs

  • Part Number: SEE936S45RRGQ
  • Type: Retro-Reflective
  • Sensing Range: 0.5 to 45 feet (0.2 to 14m)
  • Supply Voltage: 12-30V DC/AC 60Hz, 100mA
  • Current Drain:
    • Standby: 70mA at 12VDC
    • Active: 55mA at 12VDC
  • Response Time: 10 milliseconds
  • Light Source: IR LED
  • LEDs: Yellow LED (alignment), Red LED (trigger)
  • Trigger Output: SPDT Relay Output (NO/NC/COM)
  • Switching Capacity: 2A at 30VAC/VDC
  • Enclosure: IP66 Waterproof
  • Operating Temperature: -4° to 131°F (-20° to 55°C)

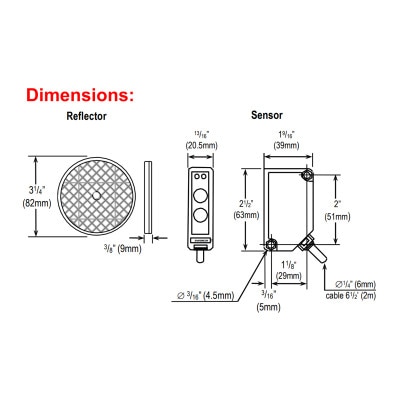

  • Dimensions:
    • Sensor: 2-11/16(H) x 13/16(W) x 1-9/16(D) inches
    • Reflector: 3-1/4(Dia.) x 3/8(W) inches
  • Approvals: ETL, CE, RoHS; Conforms to UL325-2016
  • Warranty: 1 Year
