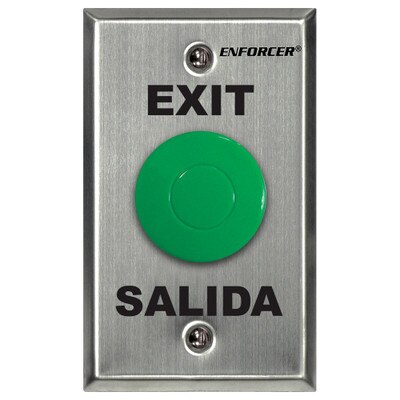

Seco-Larm Enforcer Slimline Green Request-to-Exit Plate with Pneumatic Timer
Product Description
Single-Gang, Green 1-1/2" (38mm) Round Mushroom-cap Button
The ENFORCER SD-7X13-XSP series Request-to-Exit Plate with Pneumatic Timer is ideal for applications where providing power to a timer is inconvenient, hazardous or not conforming with local codes and ordinances. Adjusting the time is easy via a timing screw and can be performed on the spot without tools.
- Built-in pneumatic timer – no power required (1~60s).
- Excellent for installations where supplying additional timer power is inconvenient.
- Reliable American-made pneumatic components.
- D.P.S.T.
- NO/NC contact rated 5A at 125VAC.
- Stainless-steel single-gang plate.
- English "EXIT" and Spanish "SALIDA" printed on plate.
- Conforms to NFPA 101 Fire Codes for non-electrical breaking of contact.
In The Box:
- Request-to-Exit Plate with Pneumatic Timer
- 2 x Mounting screws
- Manual
NOTE: Time is precise to within ±10 percent for constant temperature and may change according to environmental factors.
Tech Specs
- Part Number: SD-7213-GSP
- Type: Request-to-Exit Plates with Pneumatic Timer
- Material: Stainless steel
- Size: Single-gang
- Switching Capacity: 5A at 25VAC
- Wiring:
- Red: 2x N.C. #18 AWG 10" (254mm)
- White: 2x N.O. #18 AWG 10" (254mm)
- Dimensions: 4-1/2(H) x 2-3/4(W) inches (115 x 70 mm)
- Mushroom Pushbutton Depth: 3-1/2 inches (88mm)
- Warranty: 1 Year
