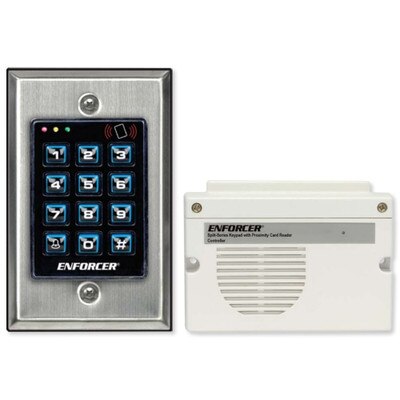

Seco-Larm Enforcer Split Series Keypad with Proximity Card Reader
Product Description
Split series installation for added security — keypad and controller are separate thereby preventing access via keypad tampering.
- 12~24 VDC Auto-adjusting operation
- Up to 1,000 possible user codes (000~999) and/or proximity cards for output #1, 100 (001~100) for output #2, 100 (001~100) for output #3
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
- Output #1: Form C relay, 5A@24VDC max.
- Output #2: Form C relay, 1A@24VDC max.
- Output #3: Form C relay, 1A@24VDC max.
- Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Tamper output: N.C. Dry contact, 50mA@24VDC max.
- Keypad illuminates when a button is pressed; backlight can be programmable for FULL or AUTO in standby mode
- Built-in door chime
- Built in current limited (750mA) power source for keypad for added security
- Keypad active, alarm, duress, and interlock output: Transistor ground, 100mA@24VDC max.
- Keypad mounts to a standard single-gang back box (surface-mount back box included)
- All features are programmed directly from the keypad: No need for an external programmer
- EEPROM Memory protects programmed information in case of power loss
- Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, 10 (01~09) for output #3
- Programmable egress input with optional warning alarm and delayed egress
- Door sensor input for anti-tailgating operation
- Interlocking input for connecting to a second keypad for mantrap applications
- Simple three wire connection between keypad and controller
In The Box:
- Keypad
- Controller
- 2 x Diodes
- Keypad back box
- 2 x Installation screws
- 5 x Mounting screws
- 5 x Mounting screw anchors
- Manual
NOTE: Does not include optional proximity cards/tags.
Tech Specs
- Part Number: SK-4131-SPSQ
- Operating Voltage: 12~24 VDC
- Current Draw (at 12VDC):
- Standby: 88mA
- Keypress: 115mA
- Output 1 active 115mA
- Output 1, 2 active 128mA
- Output 1, 2, 3 active 138mA
- Total max. current draw: 220mA
- Outputs:
- #1 – Form C 5A@24VDC
- #2 – Form C 1A@24VDC
- #3 – Form C 1A@24VDC
- Alarm: 100mA@24VDC
- Key Active: 100mA@24VDC
- Duress: 100mA@24VDC
- Interlock: 100mA@24VDC
- Tamper: 50mA@24VDC
- Inputs:
- Egress: N.O. Ground
- Door Sensor: N.C. Ground
- Door Inhibit: N.O. Ground
- Doorbell: N.O. Ground
- Tamper: N.C. Ground
- Proximity Reader Frequency: 125kHz (EM 125)
- Proximity Reader Sensing Distance: 1-1/2 inches (38mm)
- Operating Humidity: 5 to 95 percent (non-condensing)
- Operating Temperature: -4° to 158°F (-20° to 70°C)
- Dimensions:
- Keypad: 4-5/8(H) x 2-7/8(W) x 1-1/2(D) inches (117 x 73 x 38 mm)
- Controller: 3-7/16(H) x 4-3/4(W) x 1-1/4(D) inches (87 x 120 x 32 mm)
- Weight:
- Keypad: 6.3 ounces (180g)
- Controller: 8.8 ounces (250g)
- Approvals: FCC, CE, RoHS
- Warranty: Lifetime Limited (U.S. and Canada); 1 Year Limited for All Other Countries
