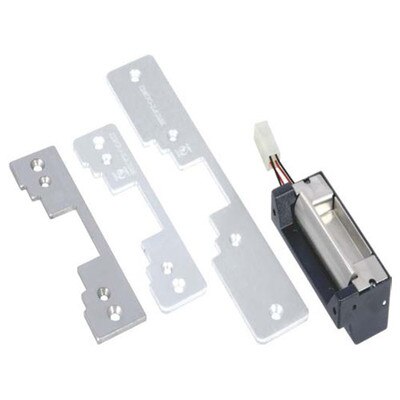

Seco-Larm Enforcer Universal Door Strike
Product Description
The SECO-LARM Universal Door Strike (SD-996C-NUQ) has recently been updated to include a built-in power connector for an even more convenient installation.
This can be used with virtually any cylindrical-locking system and can be configured for use in wood, aluminum, or metal doors. Included are three different-sized faceplates that can be easily installed on the strike to match the specific door frame.
- NEW: Built-in power connector for easier installation
- Includes 3 faceplates for nearly any door type
- Field-selectable fail-safe or fail secure operation
- Field-selectable dual voltage 12/24 VDC operation
- Reversible non-handed design
- Low profile: Strike is only 1-1/4" deep for use with hollow aluminum frames
- Includes trim plate to hide gaps in installation
- Optional lip-extension brackets available:
- SD-995C-LE25 – 1" Extension
- SD-995C-LE50 – 2" Extension
In The Box:
- Door Strike
- 3 x Mounting Plates
- Trim Plate
- 2 x Electrical Connectors
- 12 x Mounting Screws, Assorted
- 2 x Anchor Nuts
- 2 x Mounting Tabs
- Security Allen Wrench
- Mounting Template
Tech Specs
- Part Number: SD-996C-NUQ
- Faceplate Dimensions:
- Aluminum: 4-7/8 x 1-1/4 inches (124 x 32mm)
- Hollow Metal: 4-7/8 x 1-1/4 inches (124 x 32mm)
- Wood: 7-15/16 x 1-7/16 inches (202 x 37mm)
- Operating Voltage: 12 or 24 VDC, ±15 percent
- Current Draw:
- 12VDC: 280mA @ 12VDC
- 24VDC: 140mA @ 24VDC
- Operating Temperature: 14° to 113°F (-10° to 45°C)
- Operating Humidity: 85 percent, ±15 percent
- Jaw Strength: 2,000 pounds
- Certifications: UL, CE, RoHS
- Warranty: 3-Year Limited
