  • Seco-Larm Enforcer Access Control Keypad, Outdoor, Sealed/Weatherproof

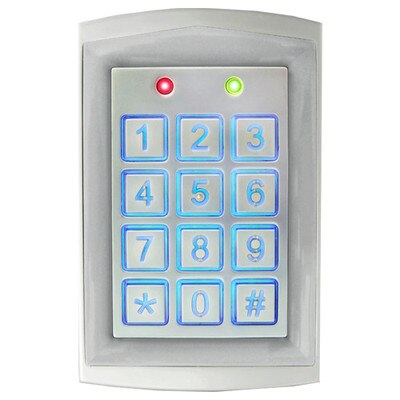

Seco-Larm Enforcer Access Control Keypad, Outdoor, Sealed/Weatherproof

$95.49
SKU: SESK1323SDQ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

  • 12~15 VDC operation.
  • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
  • 2 Form C relays, each rated 1 Amp @ 30VDC.
  • Each relay has programmable output time from 1~99 seconds or toggle.
  • Output #2 can be programmed for use with a doorbell.
  • 2 Egress inputs and 1 door sensor input.
  • Backlit keys for easy nighttime use.
  • Two multi-colored status LEDs.
  • Able to mount to a single-gang back box.
  • All features are programmed directly from the keypad – no need for an external programmer.
  • EEPROM memory protects programmed information in case of power loss.
  • Optical tamper for added security.
  • Circuitry is potted with epoxy for outdoor use.
  • IP65 weatherproof rating, rugged aluminum construction.

Tech Specs

  • Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
  • Number of user codes: Up to 1,010
  • Operating voltage: 12~15 VDC
  • Current drain:
    • Stand-by: 40mA@12VDC
    • Active: 70mA@12VDC
    • Relay outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • Egress inputs: 2, N.O. Ground
  • Door sensor input: N.C. Ground
  • Tamper sensor: Optical
  • Operating temperature: -4°~122° F (-20°~50° C)
  • Keypad LED life: 60,000 hours (over 6.8 years)
  • Dimensions: 6" x 1-3/4" x 15/16" (152x44x24 mm)
