Sensaphone Sentinel Standard Monitoring System (U.S. Version)

$539.10 to $715.50
SKU: PHSCD1200xD

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Sensaphone's cloud-based Sentinel (U.S. Model) allows you to monitor remote facilities and environments to check critical conditions of your climate-sensitive commodities with the same degree of certainty you've come to expect from Sensaphone. It takes the burden out of managing your system by giving you access to your readings from anywhere using a simple, powerful web-based interface. If there's a disruption, you'll be the first to know. Alerts can be sent straight to your mobile device, keeping you updated and giving you peace-of-mind wherever you are so you can remain focused on business as usual.

  • Store your sensor readings in "the cloud" to automatically protect against data loss and provide limitless information storage.
  • Receive alarm notifications through an Internet or cellular connection
  • Notifies an unlimited number of people by email, text message or voice phone calls in the event of an alarm
  • Up to twelve external sensors monitor temperature, humidity, water and more
  • Manage multiple units, make programming changes and access status conditions using a simple, powerful web-based interface
  • Made in the USA

Sensaphone offers two types of subscriptions for the Sentinel: Basic Ethernet and Premium Ethernet. The Basic Ethernet subscription is free while the Premium Ethernet subscription is $5.95 per month with no contract required.

Basic Ethernet includes: Email, iphone/Android App, Live Status & Reading, Programming on the cloud, Escalations (High, Low other), Alarm Reset, Data Logging & Storage (30 Days of Logs), Event log (30 Days of Logs), Graphing, Supervised, SSL Data Encryption, Multiple Alert Recipients, Multiple User Logins, and View All Devices at Once.

Premium Ethernet includes: Email, Text Message, Phone, iphone/Android App, Live Status & Reading, Programming on the cloud, Escalations (High, Low other), Alarm Reset, Data Logging & Storage (Unlimited), Event log (Unlimited), Auditing, Graphing, Automated Reports (Coming Soon), Supervised, SSL Data Encryption, Multiple Alert Recipients, Multiple User Logins, and View All Devices at Once.

In The Box:

  • Sensaphone Sentinel
  • Standard Power Supply
  • Backup Battery Pack
  • Network Cable (3 feet)
  • (Weatherproof Clear Door Enclosure included for part# SCD-1200-CD)
  • (Weatherproof Solid Door Enclosure included for part# SCD-1200-SD)

NOTES: External sensors are not included. Sensaphone Sentinel is compatible with Sensaphone branded sensors except for the IMS series of sensors and wireless sensors. It's also compatible with any dry-contact type of sensor (which can be normally opened or normally closed) and any 4-20mA transducer type of sensor. Your network must support DHCP for initial configuration.

Available for sale only in the U.S.

Tech Specs

  • Part Number:

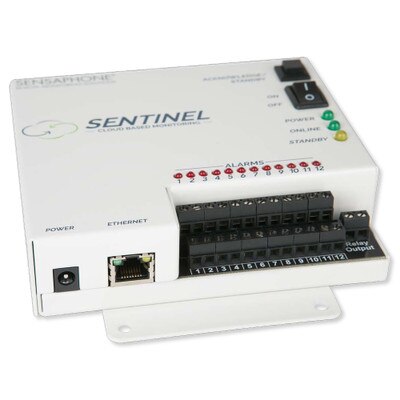

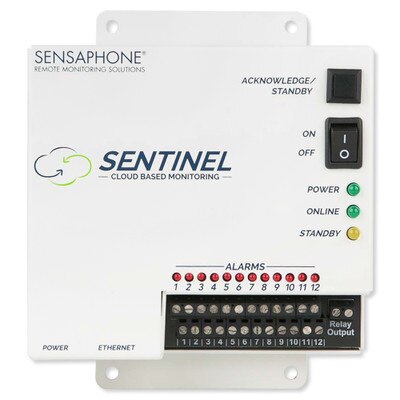

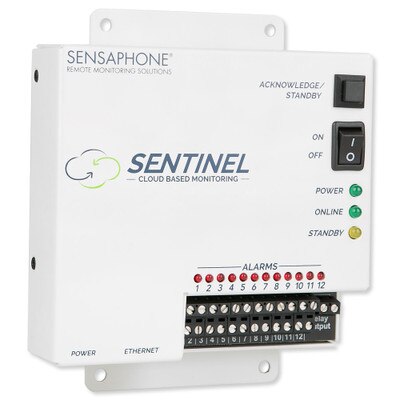

    • SCD-1200 (No Enclosure)

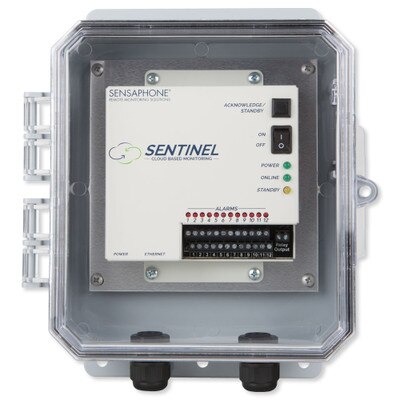

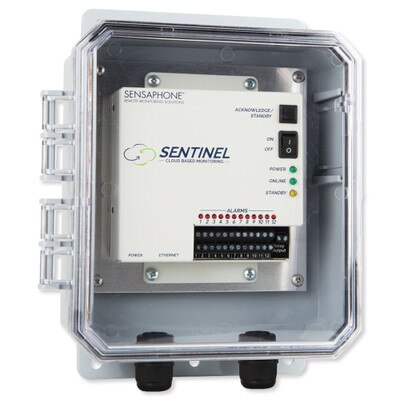

    • SCD-1200-CD (Weatherproof Clear Door Enclosure)

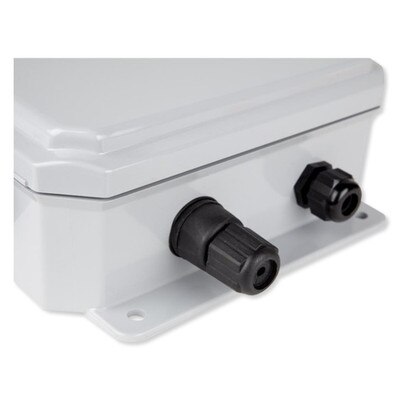

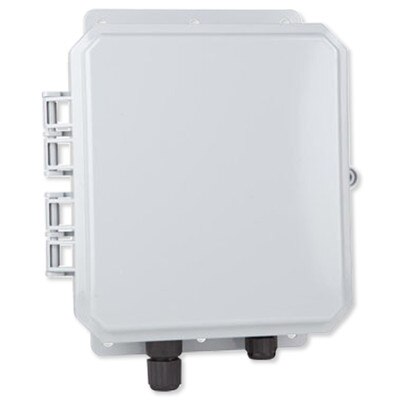

    • SCD-1200-SD (Weatherproof Solid Door Enclosure)
  • Alarm Notification Methods:
    • Email, Text Messages, Voice Phone Calls
    • Programmable alarm escalation levels
    • Comprehensive scheduling per input, profile, and alarm destination
    • Unlimited number of User Profiles
    • Multiple contact types per user
  • 12 Universal Inputs:
    • Normally Open/Normally Closed Dry Contact
    • 2.8K/10K Thermistor
    • 4-20mA Current Loop
    • Pulse Count
    • 12 Bit Resolution
  • Temperature Sensing Range: -109° to 168°F (-85° to 76°C)
  • Relay Output: Programmable. Rated for 1A 30VAC/1A 30VDC
  • Data Logging:
    • Unlimited samples securely stored on the Sentinel Servers
    • Programmable sampling interval – 1 min to 24 hrs
    • User programmable channel selection
  • Communication Ports: Ethernet 10/100Base-T
  • Battery Backup:
    • 4.8V 2000mAHr NiMh Battery pack (included)
    • Provides 8 hours of backup
  • Local Indicators:
    • 12 Alarm Status LEDs
    • Power LED
    • Online LED
    • Standby LED
    • Ethernet link and Activity LEDs
  • Power Requirements: 12VDC plug-in power supply (included)
  • Operating Humidity: 0-90% RH, non-condensing
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Dimensions:
    • SCD-1200 (No Enclosure): 5.5 x 5.5 x 1.5 inches (140 x 140 x 38mm)
    • SCD-1200-CD (Weatherproof Clear Door Enclosure): 9.5 x 11.1 x 3.5 inches (241 x 282 x 89mm)
    • SCD-1200-SD (Weatherproof Solid Door Enclosure): 9.5 x 11.1 x 3.5 inches (241 x 282 x 89mm)
  • Standards: FCC Part 15 - Class A Compliant
  • Warranty: 2-Year Limited
