  • Shelly Qubino Wave Shutter Position Control Module, Z-Wave 800

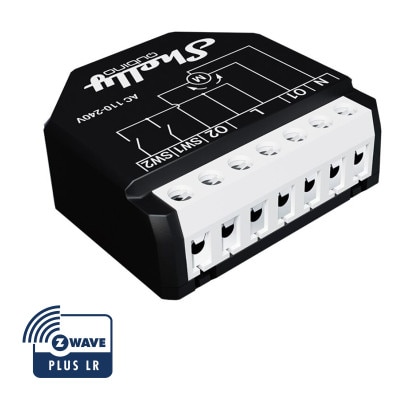

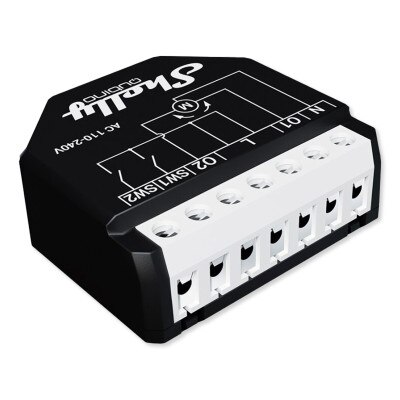

Shelly Qubino Wave Shutter Position Control Module, Z-Wave 800

$32.99
SKU: QUWAVESHUTTER

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Shelly Qubino Wave Shutter Position Control Module, Z-Wave 800 is a Z-wave compatible wire-in controller that adds remote and automated position controls to roller shutters, blinds, windows, awnings, pool covers, and other devices powered by bi-directional AC motors. The Wave Shutter can completely or partially open or close your connected shutters, blinds, or awnings from your local switch or by using your smart device via Z-Wave wireless connections. The controlled motorized device can be commanded at your discretion or in response to automated preprogrammed triggers such as when a window is opened or light levels increase past a certain threshold. It can also measure and record the energy usage of connected devices to provide helpful information for you to save money on your electrical bill. This smart module fits behind a switch or outlet and can immediately include the connected device into your Z-Wave network for wireless remote control and inclusion into smart scenes or automated schedules. It features the latest Z-Wave 800 wireless technology, which ensures reliable signal strength, greater encryption protection, and wide compatibility with most Z-Wave compatible devices and controllers.

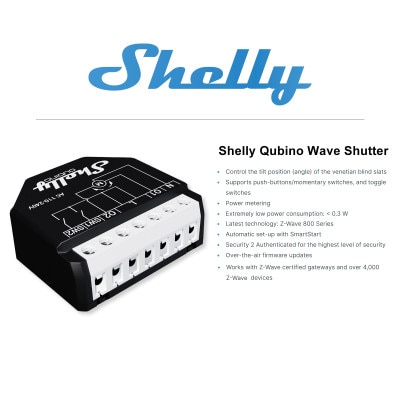

  • Z-Wave 800 compatible relay module offers precise control the position or angle of motorized drapes, awnings, and venetian blind slats
  • Completely or partially open motorized blinds, shutters, from a connected switch or Z-Wave controller
  • Precisely adjust the angle of slats and shutters or partially open drapes, pool covers, and awnings

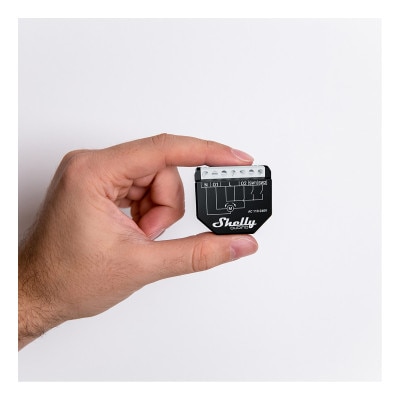

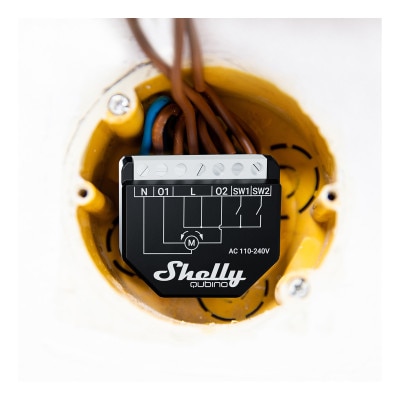

  • Fits into electrical box behind push-buttons, momentary switches, and toggle switches
  • Provides real-time energy consumption data to help you track and reduce your electricity usage
  • Overheat, overpower, and overvoltage protection automatically shuts off the Wave Shutter before voltage spikes or rapid temperature changes damage the module or its connected devices or wiring
  • Acts as Z-Wave repeater up to 130ft line of sight
  • Z-Wave 800 compatibility provides enhanced signal strength, greater transmission range, and wide compatibility with most Z-Wave and Z-Wave Plus devices
  • Z-Wave Smart Start and S2 encryption technology to pair new devices quickly and ensure enhanced security
  • Works with Alexa through the Shelly Smart Control app or connected Z-Wave compatible hub's app

Why You Would Use This Product:

The Shelly Qubino Wave Shutter Position Control Module, Z-Wave 800 is ideal for anyone looking to automate their window coverings for enhanced comfort and efficiency. As a part of a smart home network, you can schedule your blinds or shades to open and close at specific times, ensuring optimal natural light and privacy throughout the day. This automation can also contribute to energy savings by reducing the need for heating and cooling systems. For example, you can program the shutters to close during the hottest part of the day to keep your home cool or open in the morning to let in natural light.

In The Box:

  • Wave Shutter
  • DSK Label
  • User Guide

Notes:

Tech Specs

  • Part Number: Wave Shutter
  • EAN: 3800235269008
  • Power Supply: 110–240 V AC ±10%
  • Power Consumption: < 0.3 W
  • Power Measurement: Yes
  • Max. Switching Voltage AC: 240 V
  • Max. Switching Current AC: 10 A Per Channel
  • Overcurrent Protection: Yes
  • Overheating Protection: Yes
  • Z-Wave Frequencies Band(s): 908.42 Mhz
  • Z-Wave Repeater: Yes
  • Z-Wave Range: Up To 40 m Indoors (131 Ft.) (Depends On Local Condition)
  • Maximum Radio Frequency Power Transmitted In Frequency Band(s): < 25 mW
  • CPU: Z-Wave S800
  • Size (H x W x D): 37 mm X 42 mm X 16 mm ± 0.5 mm / 1.46 In X 1.65 In X 0.63 In ± 0.02 In
  • Weight: 29 G / 1.02 Oz.
  • Mounting: Wall Console
  • Screw Terminals Max. Torque: 0.4 Nm / 3.5 Lb/In
  • Conductor Cross Section: 0.5 To 1.5 mm2 / 20 To 16 AWG
  • Conductor Stripped Length: 5 To 6 Mm / 0.20 To 0.24 In
  • Ambient Temperature: -20°C To 40°C / -5°F To 105°F
  • Humidity: 30% To 70% RH
  • Max. Altitude: 2000 M / 6562 Ft.
  • Shell Material: Plastic
  • Color: Black
  • Warranty: 2 Year

Product Docs
