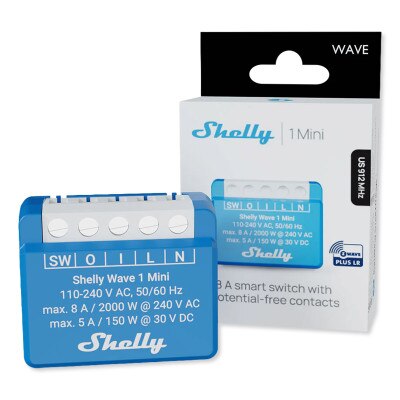

Shelly Wave 1 Mini US, Z-Wave 800 & Z-Wave LR
Product Description
The Shelly Wave 1 Mini US, Z-Wave 800 and Z-Wave LR is a versatile Z-Wave relay switch designed to integrate high voltage appliances or lights into your Z-Wave automation system. It adds remote On/Off and automated control to lighting and electrical devices paired with a single switch or outlet. This compact Z-Wave relay module fits into the electrical box behind a wall switch or outlet. The Wave 1 Mini US supports an electrical load up to 8A, allowing you to issue Z-Wave commands and automations to larger devices such as TVs, computer and office setups, portable AC units, or lighting installations.
The Wave 1 Mini US is compatible with both Z-Wave 800 and Z-Wave LR wireless protocols to ensure reliable signal performance, greater encryption protection, and wide compatibility with most Z-Wave compatible smart home platforms. As a Z-Wave LR compatible device, it pairs directly with a Z-Wave LR compatible hub in order to communicate across extreme ranges. Z-Wave LR devices do not utilize other Z-Wave nodes as signal repeaters.
Use the Shelly Smart Control mobile application, or the mobile app of a connected Z-Wave hub or controller, to issue On/Off commands to the Wave 1 Mini US and its controlled devices on demand or program the Wave 1 Mini US to switch On/Off in response to preprogrammed triggers or at scheduled time of day.
- Z-Wave 800 module adds Z-Wave wireless control and automation to an 8A electrical load controlled by an outlet or On/Off switch
- Monitors and reports energy consumption of devices controlled by connected switches or outlets
- Built-in overheating protection shuts down the Wave 1 Mini US when unsafe or rapid changes in temperature are detected
- Can be included in Z-Wave automated scenes and schedules to turn On/Off according to preset triggers, timers, or time of day
- Supports both Z-Wave mesh protocol or Z-Wave LR star protocol to offer the choice between close range or incredible long range connection
- Z-Wave mesh range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
- Z-Wave LR protocol uses direct transmissions between the device and hub to reach up to 1 mile (1.6km) line of sight at the cost of no signal repeating
Why You Would Use This Product:
The Shelly Wave 1 Mini US Z-Wave 800 & Z-Wave LR Relay Module is perfect for those looking to automate and manage their electrical systems efficiently. In a residential setting, it allows homeowners to control lighting and appliances in different rooms independently. Automate your outdoor lights to turn on at sunset while simultaneously managing your indoor lighting based on occupancy or time of day, thus improving convenience and energy efficiency. In commercial environments, the module can reach across entire properties to other buildings, providing unparalleled connectivity and operational efficiency by monitoring lights, motors, or other electronics far from the main hub.
In The Box:
- Wave 1 Mini US
- DSK Label
- User Manual
Notes:
- A Z-Wave compatible hub or gateway is required for operation, sold separately.
- A neutral wire is required for installation.
Tech Specs
- Part Number: Wave 1 Mini LR US
- Model: QTSW-0A1X8US
- EAN: 3800238071899
- Power Supply: 110 – 240 V AC / 50–60 V DC
- Power Consumption: <0.3 W
- Power Measurement: No
- External Protection:
- 10 A, tripping characteristic B or C
- 6 kA interrupting rating
- Energy limiting class 3
- Max. Switching Voltage AC: 240 V
- Max. Switching Current AC: 8 A
- Max. Switching Power AC: 2000 W
- Max. Switching Power DC: 150 W
- Max. Switching Voltage DC: 30 V
- Max. Switching Current DC: 10 A
- Overheating Protection: Yes
- Z-Wave Long Range Network:
- Distance: Up to 262 ft. indoors (80m), line of sight or up to 3281ft. (1000m) outdoors
- Z-Wave Repeater: Yes
- Z-Wave LR Frequency Band: 912.0 MHz
- Z-Wave 800 Mesh Network:
- Distance: Up to 40 m indoors (131 ft.), line of sight
- Z-Wave Repeater: Yes
- Z-Wave LR Frequency Band: 908.4 MHz
- CPU: Z-Wave S800

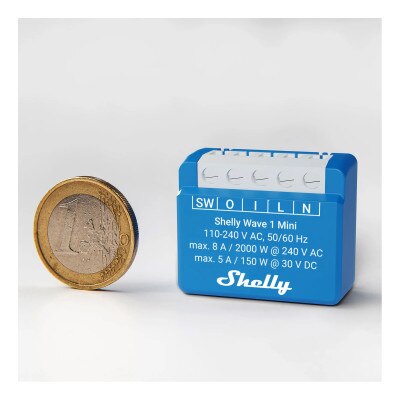

- Size (H x W x D): 1.11 x 1.35 x 0.63 ±0.02 inch (29 x 35 x 16 ±0.5 mm)
- Weight: 19 G / 0.65 Oz.
- Mounting: in-wall box
- Screw Terminals Max. Torque: 0.4 Nm / 3.5 lb in
- Conductor Cross Section: 0.2 to 2.5 mm2 / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
- Shell Material: Plastic
- Color: Blue
- Ambient Temperature: -5°F To 105°F (-20°C To 40°C)
- Humidity: 30% To 70% RH
- Max. Altitude: 2000 M / 6562 Ft.
