Shelly Wave Pro 2PM US, Z-Wave 800 & Z-Wave LR

The Shelly Wave Pro 2PM US Z-Wave 800 & Z-Wave LR Relay Module is a DIN-rail mountable relay switch designed to add Z-Wave wireless control and automation to two electrical loads. The Wave Pro 2PM US can handle a single electrical load drawing up to 25A or two electrical loads drawing up to 12.5A each. This high voltage support enables you to include larger appliances such as computer and office setups, portable AC units, or large lighting installations into a Z-Wave network. Additionally, the Wave Pro 2PM US offers energy monitoring to track live and recorded power consumption to provide users insights into their regular energy usage in order to help optimize their energy usage. The Wave Pro 2PM US installs in a standard electrical breaker box and requires a neutral wire for operation.

The Wave Pro 2PM US is compatible with both Z-Wave 800 and Z-Wave LR wireless protocols to ensure reliable signal performance, greater encryption protection, and wide compatibility with most Z-Wave compatible smart home platforms. As a Z-Wave LR compatible device, it pairs directly with a Z-Wave LR compatible hub in order to communicate across extreme ranges. Z-Wave LR devices do not utilize other Z-Wave nodes as signal repeaters.

Use the Shelly Smart Control mobile application, or the mobile app of a connected Z-Wave hub or controller, to issue On/Off commands to the Wave Pro 2PM US and its controlled devices on demand or program the Wave Pro 2PM US to switch On/Off in response to preprogrammed triggers or at scheduled time of day.

• Adds Z-Wave wireless control and automation to two electrical loads controlled by an outlet or On/Off switch
• Supports 1 outputs at 25A or two outputs at 12.5A each

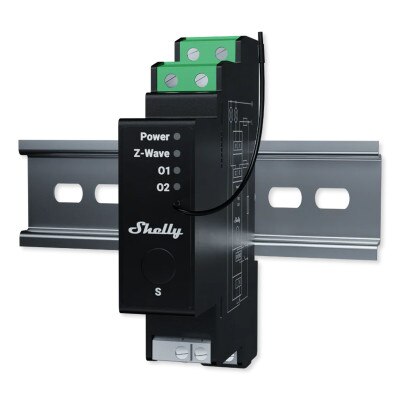

• DIN-rail mounting design installs into electrical breaker box
• Provides real-time energy consumption data to help you track and reduce your electricity usage
• Supports both standard Z-Wave mesh protocol or Z-Wave LR star protocol to offer users the choice between close range or incredible long range connection
• Standard Z-Wave mesh range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
• Z-Wave LR protocol uses direct transmissions between the device and hub to reach up to 1 mile (1.6km) line of sight at the cost of no signal repeating
• Z-Wave Smart Start and S2 encryption technology to pair new devices quickly and ensure enhanced security
• Overheat, overpower, and overvoltage protection automatically shuts off the Wave Pro 1PM before voltage spikes or rapid temperature changes damage the Wave Pro 1PM or its connected devices or wiring
• Works with Alexa through the Shelly Smart Control app or connected Z-Wave compatible hub's app

Why You Would Use This Product:

The Shelly Wave Pro 2PM US Z-Wave 800 & Z-Wave LR Relay Module is perfect for those looking to automate and manage their electrical systems efficiently. In a residential setting, it allows homeowners to control lighting and appliances in different rooms independently. For example, you can automate your outdoor lights to turn on at sunset while simultaneously managing your indoor lighting based on occupancy or time of day, thus improving convenience and energy efficiency. In commercial environments, the module can reach across entire properties to other buildings, providing unparalleled connectivity and operational efficiency by monitoring lights, motors, or other electronics far from the main hub.

In The Box:

• Wave Pro 2PM US Module
• DSK Label
• User Manual

Notes:

• A Z-Wave compatible hub or gateway is required for operation, sold separately.
• A neutral wire is required for installation.
