SimplyProAV 4K Loaded Dongler

$137.90
SKU: GSDOL001

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The SimplyProAV 4K Loaded Dongler supports the distribution of full 4K content to various displays with its selection of 4K compliant dongle adapters. The 4K Loaded Dongler comes equipped with the highest quality 4K compliant HDMI® dongles supporting bandwidths up to 32Gbps. Each dongle adapter supports resolutions up to 4K@60fps and 4:4:4 color sampling with minimum data connection speeds of 18Gbps.

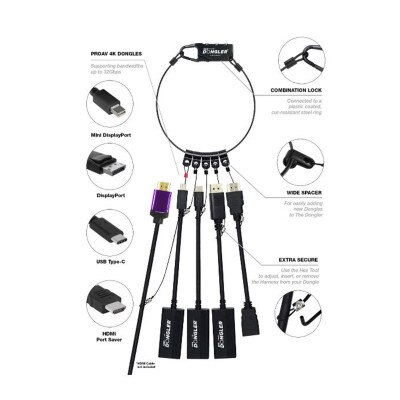

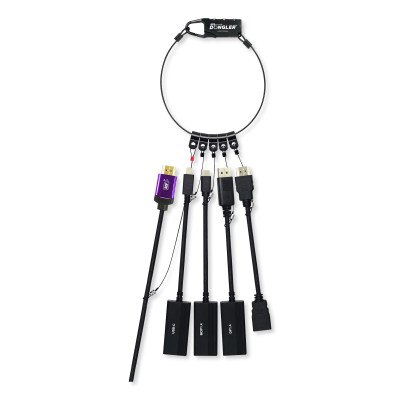

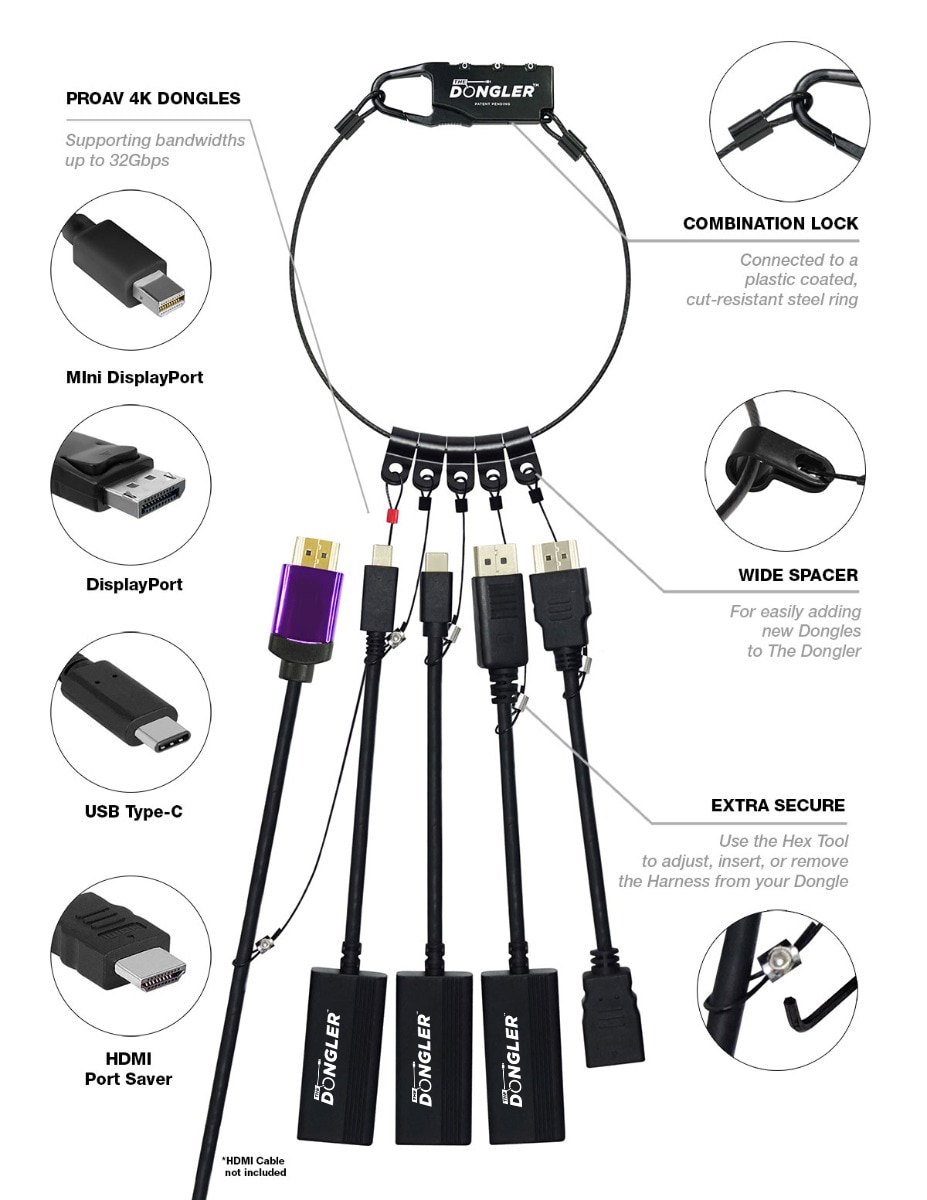

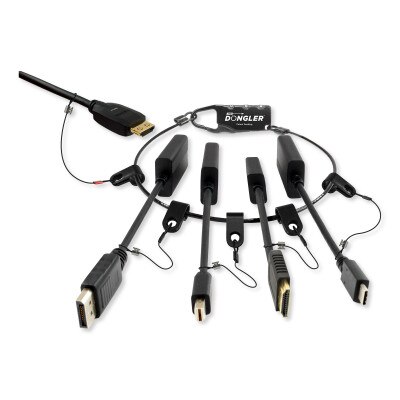

The following pigtail dongle adapters are included on a plastic-coated cut-resistant steel ring connected to a combination lock:

  • 1 x DisplayPort1.4
  • 1 x Mini-DisplayPort1.4
  • 1 x USB-TypeC
  • 1 x HDMI Port Saver for HDMi passthrough and extended reach

The pigtail dongle adapters are connected to the 4K Loaded Dongler® by cut-resistant harnesses that secure the dongles and provide strain-free connection to mobile device sockets. This allows for easy dongle changing and for anchoring the Dongler to desks, tables or any secure structure.

Features:

  • Supports the latest UHD devices at 4K@60 resolution, 4:4:4 chroma subsampling, and High Dynamic Range (HDR)
  • Supports data transmission up to 32Gbps
  • Combination Lock secures your dongles and makes dongle changing easy
  • Sleek aircraft aluminum housing for superior heat dissipation
  • HDMI® 2.0b and HDCP 2.2 rated
  • Lifetime Warranty plus USB™ and VESA Certification

In The Box:

  • 1 x DisplayPort1.4
  • 1 x Mini-DisplayPort1.4
  • 1 x USB Type-C
  • 1 x HDMI Port Saver
  • 1 x HDMI infrastructure cable harness
  • 1 x Dongle harness locking tool
  • 1 x Extra screw and lock

NOTE: The SimplyProAV 4K Loaded Dongler is not designed to be an invulnerable protection measure. It is designed to discourage casual theft and the inadvertent removal of the attached dongles and adapters.

Tech Specs

  • Part Number: DO-L001
  • UPC: 817777017687
  • Weight (lb/kg): 0.68 lb / 0.30kg
  • Dimensions (L x H x W): 9.8 x 1.6 x 7.9 in / 250 x 40 x 200 mm

Shared Adapter Features (Not Including HDMI Port Saver)

  • Max. Resolution: UHD 4K@60Hz 4:4:4 at minimum 18Gbps data connection
  • Supports HDR (High Dynamic Range)
  • HDCP 2.2
  • Professional Design for better durability and performance
  • Lightweight aluminum enclosure for good thermal performance
  • Easy Plug'n Play

DP1.4

  • Connects PC/Laptop devices to HDTV/Monitor/Projector with HDMI output
  • Supports DisplayPort 1.4a to HDMI 2.0b
  • Supports Mirror or Extend mode
  • Input: DisplayPort/M
  • Output: HDMI A/F

MDP1.4

  • Connects PC/Laptop devices to HDTV/Monitor/Projector with HDMI® output
  • Supports DisplayPort 1.4a to HDMI 2.0b
  • Supports Mirror or Extend mode
  • Input: Mini DisplayPort/M
  • Output: HDMI A/F

USB Type-C

  • Input USB Type-C/M Input connects USB Type-C source to HDTV/Monitor/Projector with HDMI® output
  • Converts USB Type-C signal to HDMI 2.0b signal
  • DisplayPort Alt Mode needed for video output
  • Input: USB Type-C/M
  • Output: HDMI A/F

HDMI Port Saver

  • Protects the HDMI port of your HDMI devices
  • Input: HDMI A/M (Bi-directional)
  • Output: HDMI A/F (Bi-directional)
  • Pass Through
  • Easy Plug'n Play
  • Max. Resolution: 4K@60Hz
  • HDMI specifications and features dependant on connected HDMI cable
