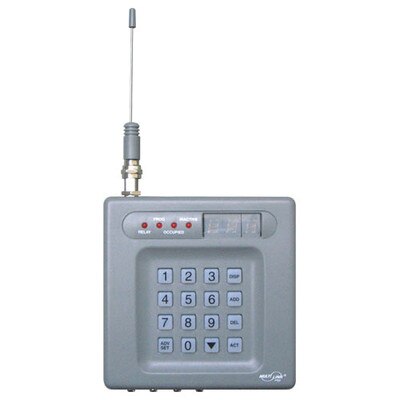

Skylink R4 Series Gate Door Control Receiver
Product Description
- A receiver for Gated Homes or Communities.
- Compatible with up to 1,000 remotes.
- Works in conjunction with Skylink transmitters R3T2 and R3T4.
- Add, delete and temporarily disable transmitter(s) individually.
- Relay output rated 1Amp at 24V AC/DC.
- Programmable relay dry contact of NC or NO or Toggle mode.
- Programmable timed relay contact from 0.3 to 2.5 seconds.
- Three super bright 7-segment LED Displays provides operation and programming.
- 4 LEDs indicate the system activity.
- Standard 16-key keypad with audible tone.
- Supplied with a 9-inch antenna with standard F Type connector.
Available for sale only in the U.S.
Tech Specs
- Operating Range: Up to 300 feet
- Frequency: 433.9MHz
- Voltage: 12 to 24VAC/DC
- Relay Output: 1Amp at 24VAC/DC.
- Dimensions: 4-1/4 x 4-1/4 x 1 inches
- Certifications: FCC
