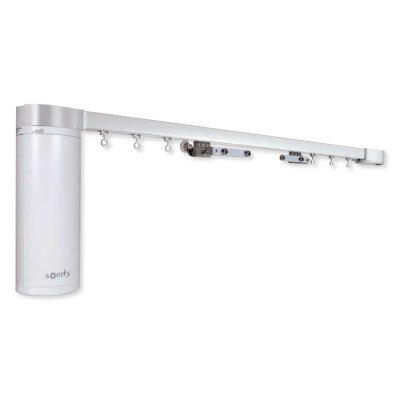

Somfy Irismo 35 (Mini DC) RTS Drapery Motor

SKU: SO1003004

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Somfy Irismo 35 (Mini DC) RTS Drapery Motor is a plug-in, compact solution to easily motorize draperies and curtains. It can automatically move attached curtains when commanded by a Somfy RTS remote control, Somfy myLink mobile app, or after a light pull on the curtains via "touch motion" technology.

  • Open or close draperies with the simple press of a button from a remote control, wall switch, smartphone/tablet app, or touch motion assistance
  • Touch motion and manual override allows manual control as desired
  • Use voice commands via Amazon Alexa to control your curtains through the myLink app and Somfy myLink RTS Smartphone and Tablet Interface
  • Add optional timers or sensors to provide true automatic control
  • Motor design and advanced high performance belt drive system provides quiet operation
  • Clean white finish which can easily be concealed above to the left or right side of the track
  • Plugs directly into standard wall outlet
  • Supports curtains and drape fabric weight up to 77 lbs
  • Compatible with drapery rods and curtain tracks up 32ft wide
  • Compatible with straight, bent, and curved curtain tracks

In The Box:

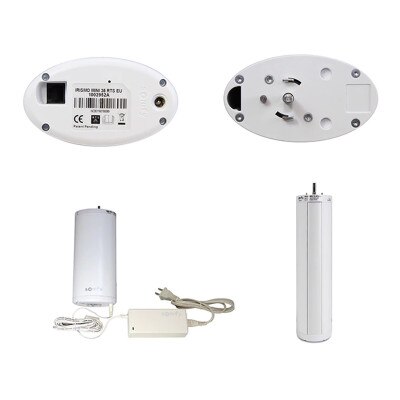

  • Irismo 35 Mini RTS Drapery Motor
  • 24 VDC Power Supply

NOTE: Requires the Somfy myLink RTS Smartphone and Tablet Interface (1811403, sold separately) to allow control via a smartphone,tablet, or voice command. Requires a wireless router and Internet service (sold separately).

Available for sale only in the U.S.

Tech Specs

  • Part Number: 1003004
  • Power Supply: 24V DC (included)
  • Amperage: 2A
  • Average Linear Speed: 4.9 in./s – 7.86 in./s (12.5 cm/s to 20 cm/s)
  • Power consumption:< 3 W
  • Power cable type: 4 M (13.2 ft.)
  • Control connector type: RJ12
  • DCT control circuit voltage: 5V DC
  • Motor sound level:< 44 dBA
  • Track maximum length: 32 ft. (9.7 m)
  • Maximum number of junctions: 2
  • Minimum bending radius: 11.8 in. (30 cm)
  • Minimum curving radius: 118 in. (300 cm)
  • Side opening max weight: 77 lbs. (35 kg)
  • Center opening max weight: 77 lbs. (35 kg)
  • Tandem alternative: 154 lbs. (70 kg)
  • Certifications: CE
  • Warranty: 5 Years
