Speaker Wire, 14AWG, 2C, Oxygen Free, 500'

$165.50
SKU: WR142SP05

Order now and we'll ship usually within 1-2 business days.

Shop More From Wire Products

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

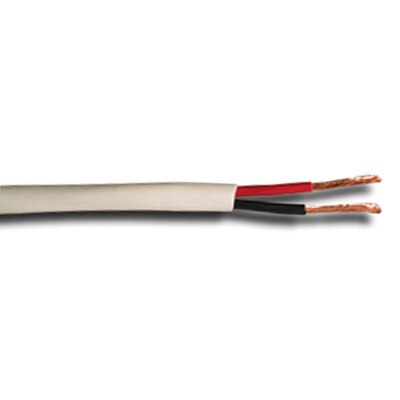

Description: 14/2 Stranded CM/CL3 Sound Audio Cable.

Construction: This cable consists of two bare copper insulated conductors and an overall jacket.

Application: General Purpose Power Limited Circuit Cable Used in Audio Applications.

Tech Specs

Construction

  • Conductor: 14 AWG 41/30 Stranded Bare Copper
  • Insulation: Polypropylene
  • Insulation: Thickness 0.010" nom.
  • Insulation Diameter: 0.095 nom.
  • Lay Length: 3.5" nom.

Properties

  • Temperature Rating: -20 to 60°C
  • Operating Voltage: 300 Volts max.
  • Capacitance: 25 pf/ft nom.
  • Impedance: 65 Ohms nom.
  • DC Resistance: 2.62 Ohms/M' at 20°C
  • Flame Rating: UL 1685 Vertical Tray
