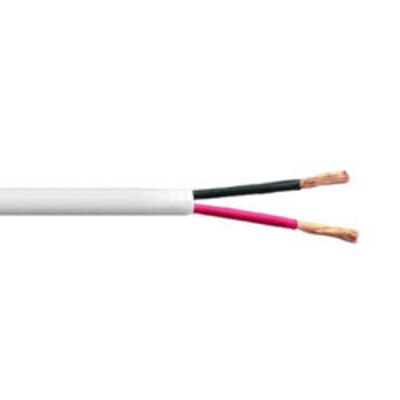

Speaker Wire, 16AWG, 2C, Oxygen Free, 500'
Product Description
Speaker cable for high-end audio installations.
Available in reels of: 500 ft.
Tech Specs
- AWG (American Wire Gauge): 16
- Conductors: 2 (Red and Black for + and -)
- Type: ETL, CM, CL3
- Jacket Color: White
- Package: Reel
- Applications: High-end audio transmissions, stereo, professional audio and studio requirements, ok with power-limited circuits.
Construction
- Conductor: 16 AWG 26/30 Stranded Bare Copper
- Insulation: Polypropylene
- Insulation Thickness: 0.010" nom.
- Insulation Diameter: 0.078 nom.
- Lay Length: 3.0" nom.
Properties
- Temperature Rating: -20 to 60°C
- Operating Voltage: 300 Volts max.
- Capacitance: 22 pf/ft nom.
- Impedance: 70 Ohms nom.
- DC Resistance: 4.10 Ohms/M' at 20°C
- Flame Rating: UL 1685 Vertical Tray
