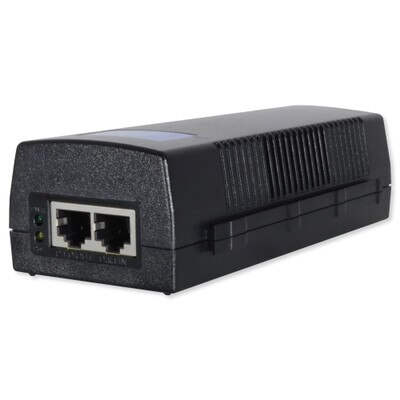

Speco 1 Port PoE Injector
Product Description
The POEINJ is an Ethernet power device that delivers data signals from a network switch and power from the included AC power cable and over Cat5/5e/6 cables to a PoE capable camera.
Features:
- Used in conjunction with Ethernet switch to power PoE cameras
- Meets IEEE 802.3af/at Ethernet standard
- Ethernet speeds up to 10/100/1000MBPS
- 2 year warranty
Installation Instructions:
- Turn off power to the units and sources. Installing the POEINJ while power is live may damage the units.
- Use an RJ45 network cable to connect the remote camera to the POEINJ through the P+D (Power + Data) /OUT connection.
- Use an RJ45 network cable to connect your network switch with the POEINJ Data/In port.
- Connect the power adapter.
- Confirm all cables are connected securely and properly and power on all units.
In The Box:
- PoE Injector
- Power Cable
NOTE: Use with the N4NXLx or N8NXLx and any Speco IP cameras.
Available for sale only in the U.S.
Tech Specs
- Part Number: POEINJ
- Ports: 1 x RJ-45 output, 1 x RJ-45 input
- Ethernet Speed: Up to 10/100/1000MBPS
- PoE Standards: IEEE 802.3at/af
- Power: 25.5W Max
- Operating Temperature: 32° F – 131° F
- Storage Temperature: -40° F – 185° F
- Operating Humidity: 0% – 95%
- Dimensions: 4.7" (W) x 2.4" (H) x 1.5" (L)
- Weight: 8 oz
- Warranty: 2 Year
