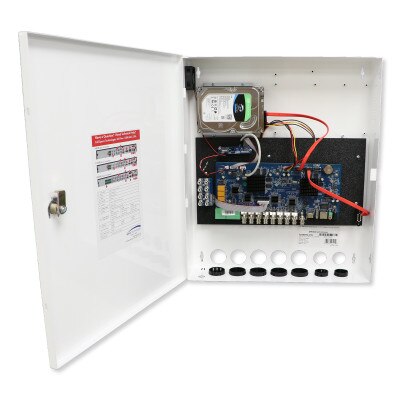

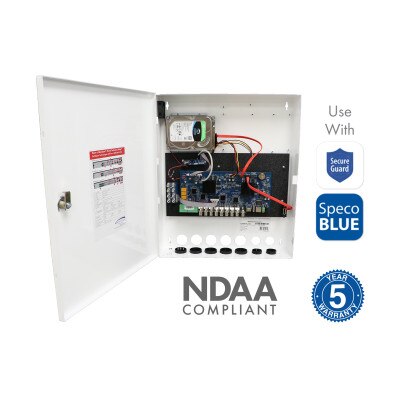

Speco 24-Channel 5MP H.265 Hybrid Wall Mount DVR with Smart Analytics & 2 SATA Ports

$803.23 to $2,184.74
SKU: SPH24WHRLxTB

Please Select Option To View Availability

Shop More From Speco Tech

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The Speco 24-Channel 5MP H.265 Hybrid Wall Mount DVR with Smart Analytics & 2 SATA Ports is a digital video recorder (DVR) that supports Smart Analytics and other advanced smart playback and recording software programs when connected with compatible TVI and IP cameras. Footage caught by connected cameras can be saved onto onboard hard drives or USB flash drives. The WHRL product line of network video recorders offers a slew of intelligent analytics at no extra change and with no licensing fees:

The 24 Channel 5MP DVR has "EZ Wizard" functions for quick installation and preset options.

  • EZ Wizards: For ease of use and setup
  • EZ Search 2.0: Quickly find an event using time-sliced thumbnail images of your recordings with quick preview
  • EZ Mobile: easy mobile setup for viewing on desktop or mobile apps
  • Camera: quickly discover and install all Speco IP cameras
  • Setup: for quick use of general settings
  • Network: network setup and port forwarding
  • Record: quickly setup recording resolutions and recording type
  • Copy: quickly copy what you are playing onto a USB flash drive

Features:

  • Supports up to 5MP on all channels and 4K on 1-channel
  • H.265 compression stores up to 2x more than H.264
  • 2 SATA ports for up to 14TB of storage
  • 1 eSATA port for an additional 8TB of storage
  • 4K HDMI out and VGA monitor output
  • Object and line crossing detection and alerts with compatible Smart Analytic Cameras
  • Smart Search – Specify a region on the camera view and search on changes in that area**
  • 2-way audio communication
  • Alarm 4/8/16 inputs, 1/2/4 outputs
  • Free US-based DDNS and P2P services
  • Remote viewing via web browser or your mobile device
  • Easy video exporting via USB
  • 5 year warranty*

In The Box:

  • DVR Unit
  • Power Cable
  • Ethernet Cable
  • Optical Mouse
  • Quick Start Guide

NOTE: Hard drives not covered by 5 year warranty. Does not include a USB flash drive. Smart Analytics requires compatible Analytic Cameras connected to the DVR, sold separately.

Available for sale only in the U.S.

Tech Specs

  • Part Number:
    • H24WHRL2TB: 2TB
    • H24WHRL4TB: 4TB
    • H24WHRL6TB: 6TB
    • H24WHRL8TB: 8TB
    • H24WHRL12TB: 12TB
    • H24WHRL16TB: 16TB
    • H24WHRL20TB: 20TB
    • H24WHRL24TB: 24TB
    • UPC:
      • H24WHRL2TB (2TB): 030519032179
      • H24WHRL4TB (4TB): 030519031998
      • H24WHRL6TB (6TB): 030519032193
      • H24WHRL8TB (8TB): 030519032209
      • H24WHRL12TB (12TB): 030519032216
      • H24WHRL16TB (16TB): 030519032322
      • H24WHRL20TB (20TB): 030519034524
      • H24WHRL24TB (20TB): 030519032339

    System

    • Channels: 24
    • Compression: Standard H.265
    • OS: Embedded Linux

    Video

    • Analog Only Input: BNC x 16
    • Configurable Analog Inputs: 8
    • IPC Only Input: Up to 8
    • Network Access & Transfer Bandwidth: 64/192 Mbps
    • Network Access Format: 8MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps
    • IP Input: 8MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p @25fps/30fps
    • Output:
      • HDMIx1: 4Kx2K/1920x1080/1280x1024
      • VGAx1: 1920x1080/1280/x1024/1024x768
      • BNCx1: CVBS (used as the main or spot output)

    Audio

    • Network Input: RCA x 8
    • Two-Way Audio: Take up channel one audio input
    • Local Output: RCA x 1

    Recording

    • Record Stream: Dual stream recording
    • Resolution: 8MP (4K), 5MP, 4MP, 1080P, 720P, WD1
    • Frame Rate:
      • 4K@6fps/7fps
      • 5MP@12fps/15Fps (PAL/NTSC)
      • 1080P/720P/WD1@25fps/30fps (PAL/NTSC)
    • Bit Rate: 32 to 78 MBps
    • Recording Mode: Manual, schedule, motion, sensor, intelligence

    Search & Playback

    • Simultaneous Playback: Max 16 Channels
    • Search Modes: EZ Search, museum search, time search, event search, bookmark search, snapshot search
    • Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
    • Playback Resolutions: 8MP (4K), 5MP, 4MP, 3MP, 1080P, 720P
    • Playback Functions: Play, pause, FF, FB, digital zoom, etc

    Alarm

    • Mode: Manual, sensor, motion, exception, intelligence
    • Channel Input: 16 channel local input; Supports IPC alarm input
    • Channel Output: 4 channel local output, Supports IPC alarm input
    • Linkage: Record/Snapshot/Preset/Email/Pop-up Window

    Network

    • Interface: RJ45 10M/100M/ 100 Mbps
    • Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP
    • Webclient: Multiple online users monitoring
    • Mobile Device OS: Speco Blue iOS, Android, SecureGuard® Client
    • Other Viewing Platforms: Apple TV, Amazon Fire TV

    Storage

    • HDD: SATA x2, max 14TB per HDD
    • eSATA: max 8TB
    • Max Capacity: 14TB
    • Internal SATA ports: 1
    • USB Ports (Front, Rear): 1 USB 2.0, 1 USB 2.0

    Export

    • Local: USB, USB mobile HDD
    • Network: Yes

    Interface

    • USB: USB 2.0 x 2
    • Remote Control: Yes
    • Input Method: IR Remote, Mouse

    Power

    • Power Supply: DC12V/2A
    • Power Consumption: ≤30W (without HDD)

    Physical

    • Dimensions: 15" x 10.6" x 1.8" (380mm x 268mm x 45mm)
    • Operating Temperature: -4 to 122°F (-10 to 50°C)
    • Operating Humidity: 10 to 90% non-condensing
    • User Access: Max 10 users online (web client)
