  • Speco 4MP HD-TVI IR Dome Camera, 2.8mm Lens With Junction Box

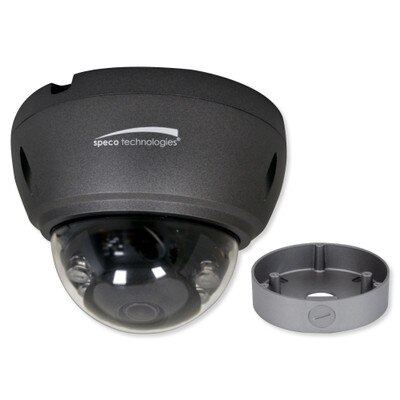

Speco 4MP HD-TVI IR Dome Camera, 2.8mm Lens With Junction Box


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

The Speco 4MP HD-TVI IR Dome Camera, 2.8mm Lens with Junction Box provides 24/7 outdoor HD surveillance in nearly any environment or lighting setting. The camera features built-in motion detection, IR LED lights, and true Wide Dynamic Range (WDR). It also supports multiple video formats (TVI, CVI, AHD, CVBS).

Save time and money on installation with HD-TVI compatible cameras. HD-TVI (High Definition Transport Video Interface) cameras use the same coaxial cables as analog CCTV cameras, so you don't have to rewire your home or business with ethernet cables for new installations.

This camera is housed in an IP66 rated enclosure that is suitable for outdoor areas. A junction box is included for cable management.

  • Supports up to 4MP at 15FPS
  • Built-in high powered IR LED's
  • Digital Wide Dynamic Range
  • 12VDC operation (power supply not included)
  • IP66 compliant, weather resistant
  • 5 year warranty

In The Box:

  • Dome Camera
  • Junction Box
  • Installation Hardwire
  • Manual

NOTE: 12VDC Power Supply not included. Digital video recorders (DVR) sold separately.

  • Part Number: VLT4DG
  • Image Sensor: 1/2.7 inch 4MP C-MOS Sensor
  • Resolution: 2,688 x 1,520 (4MP)
  • Scanning System: Progressive Scan
  • Total Pixels: 2,720 (H) x 1,536 (V)
  • Video Output: HD-ANALOG (TVI, AHD, CVI)
  • TV System: NTSC/PAL
  • Minimum Illumination: Color 1 Lux , BW 0.5 Lux
  • S/N Ratio: 52dB (AGC off)
  • Frame Rate: 15fps
  • Day and Night: IR Cut Filter, Auto, Color, B/W, EXT
  • Brightness: 1~20
  • AGC (Gain Control): 1~20
  • DNR: 2D-DNR (1~16)
  • Color Gain: 1-16
  • Mirror: Default/H/V/HV
  • Language: Multi Language
  • IR Distance: 6 High Power IR LED/66ft
  • Remote Control Interface: UTC
  • Focal Length: 2.8mm
  • Maximum Aperture Ratio: F=2.0
  • Focal Control: Manual
  • Lens Type: Fixed
  • Operation Temperature: 14° to 122°F (-10° to 50°C)
  • Ingress Protection: IP66
  • Input Voltage, Current: 12V DC +10%
  • Power Consumption: Max. 5W
  • Dimensions:
    • Dome Base Housing Circumference: 4.72 inches
    • Dome Cover Circumference: 3.11 inches
  • Weight: 0.7 lbs.
  • Warranty: 5 Years
