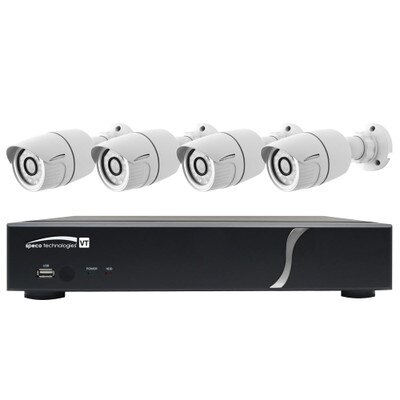

Speco HD-TVI Kit: 4-Channel DVR with 4 Bullet Cameras
Product Description
4 Ch. HD-TVI DVR and Camera Kit
DVR Features:
- FREE SecureGuard VMS Now
- 4 channel HD-TVI 1080p DVR, 1TB
- 1080p at 15fps / 720p at 30fps over coax (HD-TVI)
- Backwards compatible with all analog cameras
- Signal distance up to 1600 feet
- Video Out: 1 HDMI, 1 VGA, 1 CVBS
- H.264 video compression
- Networkable DVR with free Speco DDNS server
- 3 year warranty
EZ Wizards:
- Setup: for quick system setup
- Network: network setup and port forwarding
- Record: quickly setup recording resolutions and recording type
- EZ Search: quickly search events from thumbnails
- EZ Copy: auto copy what you are playing onto a USB flash drive
Camera Features:
- HD-TVI 1080p at 30fps
- 3.6mm fixed lens
- Weather resistant
- IP66 compliant
- 2 year warranty
In The Box:
- 1 x HD-TVI DVR, 4-Channel, 1TB
- 4 x HD-TVI 1080p Outdoor IR Bullet Cameras, White
NOTE: To preserve signal quality and distance, Speco Technologies recommends using coax with a 100 percent copper center conductor and at least 95 percent braided copper shield.
Available for sale only in the U.S.
Tech Specs
- Part Number: ZIPT4B1
HD-TVI 1080p Outdoor IR Bullet Cameras
- Lens: 3.6mm fixed lens
- Image Sensor: 1/3" 2MP CMOS
- Resolution: 1080p/720p
- Minimum Illumination: 0 lux at F2.0 (IR on) / 0.1 lux at F2.0 (IR off)
- S/N Ratio: 50dB
- Motion Detection: Yes
- Day/Night: IR-cut filter
- DNR: 2D/3D Automatic
- Number of IR LEDs: 28
- IR Range: 60 feet (depending on scene reflection)
- Power Supply: 12VDC (power supply not included)
- Power Consumption: 400mA (IR on)
- Operating Temperature: -4° to 104°F
- Weight: 9.6 ounces
- Dimensions: 2.5(Dia.) x 7.2(L) inches
- Warranty: 2 Years
HD-TVI DVR, 4-Channel, 1TB
- Power Supply Voltage: 12VDC, 3A
- Operating Temperature: 41° to 104°F (5° to 40°C)
- Storage Temperature: 14° to 122°F (-10° to 50°C)
- Operating Humidity: 20 to 80 percent (non-condensing)
- Weight: 3.3 pounds (1.5kgs)
- Dimensions: 13.4(W) x 10.31(H) x 2.48(D) inches (340 x 262 x 63 mm)
- Warranty: 3 Years
Video
- Input:
- Number of Channels: 4
- Signal Distance: Up to 1,600 feet (depending on coax quality)
- Input Level Composite: 1.0Vp-p, 75 ohms
- Signal Format: NTSC / PAL
- Video Loss Check: Yes
- Output:
- HDMI: 1 HDMI (1024x768, 1280x720, 1280x1024, 1920x1080)
- VGA: 1 VGA (1024x768, 1280x720, 1280x1024, 1920x1080)
- CVBS/Spot: 1 main or 1 spot
Audio
- Input: 4 line input
- Output: 1 line output
- Audio Codec: G.711
Sensor / Alarm
- Sensor Input: 4 channel (NC/NO selectable)
- Alarm Output: 1 alarm out by sensor, motion, video loss, HDD temperature and HDD failure
Serial
- RS-485: 1 – PTZ
Recording
- Compression: H.264
- Multi-Operation: QUADPLEX (play / record / network / backup)
- Resolution:
- 1080p TVI: 60fps
- 720p TVI: 120fps
- 960H Analog: 120fps
- Recording Mode: Continuous / Schedule / Motion / Sensor / Manual / Continuous + Motion / Continuous + Sensor
- Motion Detection: Motion detection setup by grid
- Recording by Channel's Resolution: Yes
- Pre-Recording: Max. 20 minutes
- Post-Recording: Max. 60 seconds
Playback
- Multi-Decoding: 1, 4
- Search Mode: EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log
Storage
- HDD:
- Interface Type: Serial ATA
- Capacity of 1 HDD: Up to 4TB
- Internal HDDs: 2
- Backup:
- USB Flash Drive: Video and Still Image
- USB External HDD: Video and Still Image
- Network: Video and Still Image
- USB Ports: 1 front, 1 rear
User Interface
- Menu Display: GUI
- Input Method: IR, Mouse, Keyboard Controller
Network
- Interface: 10/100 Base-T
- Streaming: CIF 15fps / channel max
Network Access
- Mobile Viewer: Live, Search, PTZ, 2-Way Audio
- PC Web Viewer: Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)
- PC Client: SpecoTech Multi-Client Viewer and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)
- MAC Client: Speco Client for MAC and SecureGuard® CMS (Live, Search, Backup, PTZ, Remote Setup)
Additional Features
- Digital Deterrent: Default + up to 8 custom audio files
- Digital Zoom: Yes
- DLS (Daylight Savings): Yes
- EZ Record: Yes
- S.M.A.R.T: Yes
- Internal Beep: By video loss, HDD error Multi-Language English / Spanish / French
- Dynamic DNS: Yes (free Speco DDNS)
- SW Upgrade: USB and remote software upgrade
- Email Notification: Yes
- NTP (Network Time Protocol): Yes
