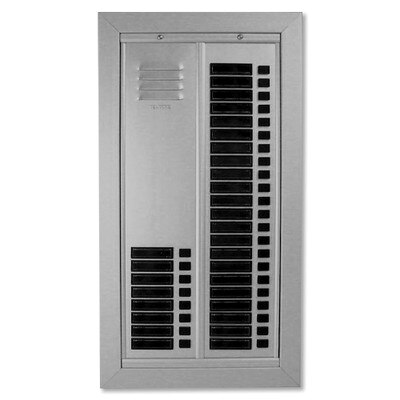

TekTone Add-on Vandal-Resistant Panel, Name Holders
Product Description
The TekTone Vandal-Resistant Add-on Panel with Name Holders is specifically designed for use with TekTone's AM492 series Entrance Speaker Panels.
For entrance panels that require contact with more than 18 apartments, an AM490/12 or AM490/22 is required. The specific model depends upon the number of additional apartments to be called.
Features:
- Modular design
- Individually replaceable name holders (black flame retardant polycarbonate plastic)
- Easily accessible
- Simple installation
NOTES:
For use with AM492xx Entrance Speaker Panels. Requires the following accessories for complete installation:
- OH192 Flush Box
- OF192 Trim
Tech Specs
- Part Number:
- 12 buttons: AM490/12
- 22 buttons: AM490/22
- Dimensions: 16.5 (H) × 4 (W) inches (413 mm × 100 mm)
- Push Buttons: Individually replaceable type with self-wiping contacts.
- Construction: Modular, extruded anodized aluminum panel.
- Mounting:
- OH190 series housing for flush mounting
- OF190 series frame for surface mounting
