UCS Vega Twin Synchro Chain Actuator DC

$1,211.78 to $1,247.95
SKU: TR41154x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The UCS Vega Twin Synchro Chain Actuator DC adds motorized open and close operation to wide windows, awnings, wall vents, and curtains. The dual 12 inch stainless steel chain operator provides durable and reliable performance, supporting up to 132lbs of force for push and pull motions.

  • For skylights, ultra wide awning or hopper windows, or curtain wall vents
  • Double-link stainless steel chain, with aluminium encased terminal
  • Chain electronically synchronizes motor speeds
  • Operate several openings simultaneously by wiring motors in parallel

In The Box:

  • Twin Synchro Chain Actuator
  • Power cable

Tech Specs

  • Part Number:

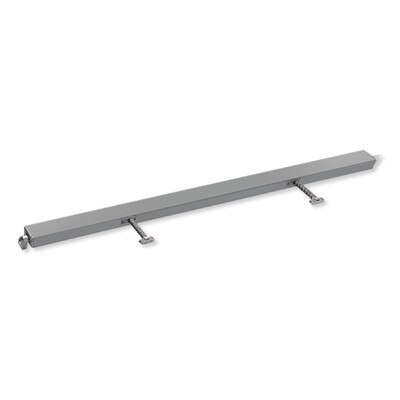

    • 41154LUL (Silver)

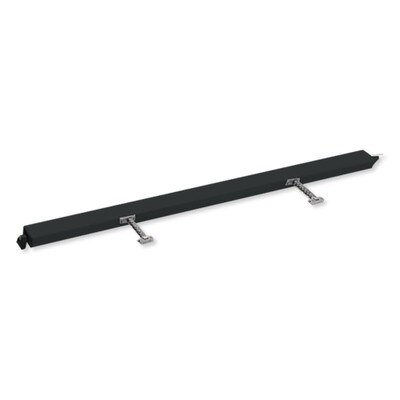

    • 41155NUL (Black)

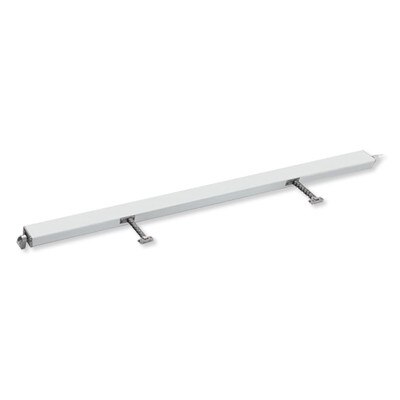

    • 41156RUL (White)
  • Dimensions: 39.21" W x 2.72 H x 1.46 D (996mm W x 69mm H x 37mm D)
  • Force: 132 lbs. (600 N) push and pull
  • Chain stroke: 11.8" (300mm)
  • Chain Speed: 0.35 inch (9mm) per second
  • Voltage Supply: 24VDC Low Voltage
  • Current Absorption: 1.4 A average
  • Run/Rest cycle: For every 60 sec running (on), must then rest (off) for 120 sec
  • Limit Stop:
    • (Open): Built in limit switch
    • (Closed) Integrated electronic power cut-off
  • Power Cable: UL cable 1.5 meter included, white color
  • Min. installation Height:
    • 10" sash height if using pivoting brackets
    • 35.5" (900 mm) if brackets are not used
  • Ratings and Certifications: UL, IP20
  • Warranty: 2 Year
