USP Automatic Voice Dialer, 4-Channel Voice Message Dialer
Product Description

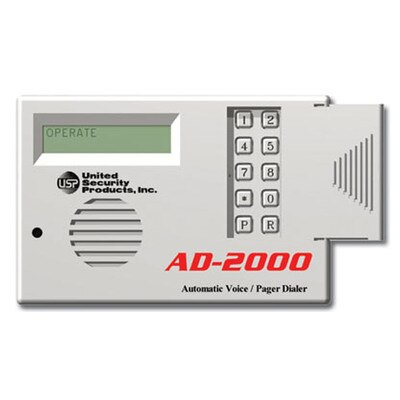

The AD-2000 dialer features busy-line and no-answer detection to ensure prompt transmission of up to 4 prerecorded messages delivered sequentially to as many as 8 standard telephones, cellular phones, voice and/or numeric pagers. Messages to both local and long-distance calls can be transmitted. When activated, the dialer instantly begins calling the numbers in sequence, delivering each message 1 to 3 times in a row, in accordance with the pre-selected number of dialing attempts.
The AD-2000 is extensively programmable, offering personalized customization to fulfill virtually any residential or business requirement. Plain-English prompts walk the user through the process in a timely manner. Installation and hookup are quick and easy, whether installed in conjunction with normally open, normally closed dry contact or voltage activation sensors.
Features:
- A Full Featured Security System with 4 Independent Voice Message Dialer Channels
- 4 Separate Outgoing Messages
- Automatically Calls up to 8 telephones or cell phones
- Listen-In verification and 2 way communication
- Built-in Line Seizure
- EEPROM Memory retains program despite power loss
- Remote reset feature allows termination of activated channel
- Universal Dial Tone. Works with any analog phone system.
- Built-In Auxiliary Output to drive external siren, strobe or relay
NOTE: Power Supply Sold Separately
Applications:
- Security/burglar/fire alarm notification
- Equipment malfunction notification
- Environmental warning notification
- High/Low Temperature threshold notification
Tech Specs
- Part Number: AD2000
- UPC: 749617043177
- Power source: 9-18VDC
- Current (OPERATE mode – standby): 28mA typical.
- Current (OPERATE mode – dialing): 100mA max.
- Activation:
- N.C. Activation: dialer activates when an "open" is detected
- N.O. Activation: dialer activates when a "close" is detected
- Voltage Activation:
- N.C. (applied voltage: Min. +5VDC, Max. +28VDC)
- N.O. (loss of continuous voltage: Min. 0VDC, Max. 0.25VDC)
- Max. Digits for outgoing numbers: 50
- Operating temperature range: -18 to 55 C (0 to 130 F)
- Dimensions (inches): 6 x 4 x 1.5in
- Mounting: Wall or Flat Surface
- Case Material: ABS
- Color: White
