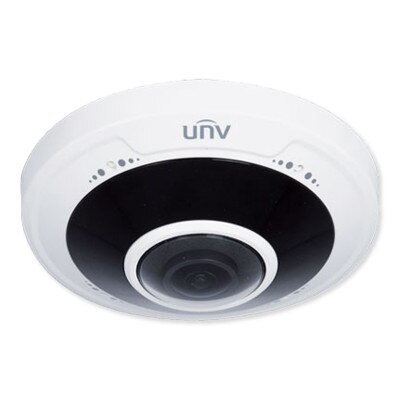

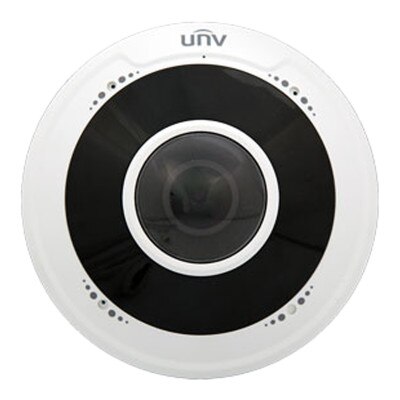

Uniview 5MP Fisheye Fixed Dome Network Camera, 1.4mm Lens
Product Description
The Uniview 5MP Fisheye Fixed Dome Network Camera, 1.4mm Lens, adds ultra high definition video surveillance to any security network and can be installed into indoor or outdoor settings. This panoramic security camera delivers a single panoramic video feed at up to 5MP (2592 x 1944p @ 30fps resolution or three video channels at 720 x 576p @ 30fps. The camera provides the clearest possible images in any lighting environment through the use of a smart IR LED with digital noise reduction and digital defog technologies. Plus, the camera allows for communication with monitored subjects though the camera's built-in microphone and speaker.
This camera supports Smart Video Content Analysis (VCA) software that adds intelligent analytics and behavior detection features to your surveillance network such as line crossing, area intrusion, motion detection, tampering alarm, audio detection. It also features a Heatmap (when used with a Smart VCA compatible NVR) that provides data of moving subjects within the camera's field of view, all in real time. General functions also include watermark, IP address filtering, access policy, ARP protection, RTSP authentication, and more.
- Fisheye dome camera captures panoramic footage in 5MP @ 30fps
- Supports Ultra 265, H.265, H.264, MJPEG video compression formats
- Supports Smart Video Content Analysis (VCA) software to improve integration with security alarms and detect specific subjects captured on footage
- Intelligent analytics features include line crossing, area intrusion, motion detection, tampering alarm, and heat map function tracking
- Built-in microphone and speaker allows communication with monitored subjects
- 120dB true WDR technology ensures clear visibility in high contrast settings and adaptive IR LEDs reduce IR oversaturation up to 33 feet
- IP66 and IK10 rated for weather resistant outdoor use and vandal-resistant durability
- Powered via 12VDC power supply or PoE connection
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:

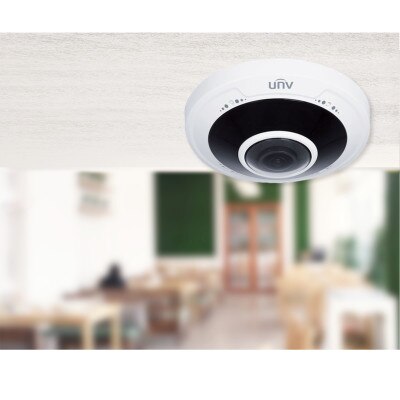

The Uniview 5MP Fisheye Fixed Dome Camera is ideal for surveillance networks where tracking movements of monitored subjects in a wide area is needed, such as in a retail store, parking lot, warehouse, school, or other location that may draw a lot of foot traffic. This fisheye dome camera is best placed in locations that make use of the camera's panoramic 360° FOV, such as large open retail rooms, warehouses, covered outdoor walkways, etc. With the Heat Map function, you'll be able to track movements of monitored subjects and see where people tend to linger and pass through often so you can determine what areas of your property may need added security. The camera's detection capabilities, such as motion detection and tampering alarm, provide additional layers of security, making it a valuable tool for proactive surveillance.
In The Box:
- Fisheye Dome Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Smart Video Content Analysis compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC815SB-ADF14K-I0
- UPC: N/A
Camera
- Image Sensor: 1/2.8", progressive scan, 5.0 megapixel, CMOS
- Minimum Illumination:
- Color: 0.01 lux (F2.0, AGC ON)
- 0 lux with IR
- Day/Night: IR-cut filter for day & night function
- Shutter: Auto/Manual, 1~1/100000s
- WDR: 120dB
- S/N: >55dB
Lens
- Lens: 1.4mm@F2.0
- Iris: Fixed
- Angle of View: 360°
DORI
- DORI Distance:
- Lens: 0.14 mm
- Detect : 31.5 m (103.34ft
- Observe: 12.6m (41.33ft)
- Recognize: 6.3 m (20.66ft)
- Identify: 3.2m (10.49ft)
Illuminator
- IR Range: Up to 10m (33ft)
- Wavelength: 850nm
- IR On/Off Control: Auto / Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 5MP (2592 x 1944): Max.30fps
- Sub Stream: 1080P (1920 x 1080): Max.30fps; 720P (1280 x 720), Max 30fps
- Third Stream: D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps;
- Video Bitrate: 128 Kbps~16Mbps
- U-Code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Double streams
- White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal / Flip Vertical / Flip Horizontal / 180°
- Dewarping: N/A
- HLC: N/A
- BLC: Support
- Defog: Digital Defog
Events
- Statistical Analysis: Heat Map
- Basic Detection: Motion detection, tampering alarm, audio detection
- General Function: Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression: G.711
- Audio Bitrate: 64 Kbps
- Two-Way Audio: Support
- Suppression: Support
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User / Host: Up to 32 users
- 3 User Levels: Administrator, Common User and Operator
- Security:
- Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP
- Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client:
- EZStation
- EZView
- EZLive
- Web Browser:
- Plug-in Required Live View: IE9+, Chrome 41 and below, Firefox 52 and below
- Plug-in Free Live View: Chrome 57.0+, Firefox 58.0+, Edge 16+
Live View Display

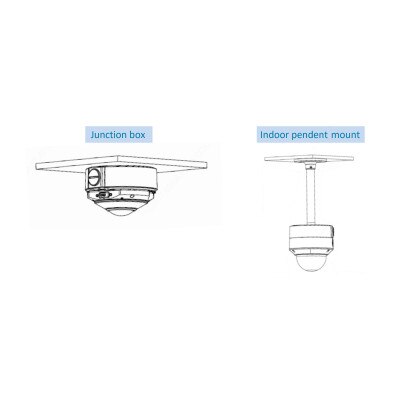

- Mount Type: Support Table, Wall, and Ceiling
- Decoding Mode: Support software decoding
- Display Mode: 11 display modes in total
- Software Decoding:
- Table Mount: Fisheye view, 360°Panoramic + 1PTZ, 180°Panoramic, Fisheye + 3PTZ, Fisheye + 4PTZ, 360°Panoramic + 6PTZ, Fisheye + 8PTZ
- Wall Mount: Fisheye view, Panoramic, Panoramic + 3PTZ, Panoramic + 4PTZ, Panoramic + 8PTZ
- Ceiling mount: Fisheye view, 360°Panoramic + 1PTZ, 180°Panoramic, Fisheye + 3PTZ, Fisheye + 4PTZ, 360°Panoramic + 6PTZ, Fisheye + 8PTZ
Interface
- Audio I/O Input: Impedance 35kΩ; amplitude 2V [p-p]
- Alarm I/O Output: Impedance 600Ω; amplitude 2V [p-p]
- RS485: N/A
- Built-in Mic: Built-in two mics
- Built-in Speaker: Supported 2
- Wi-Fi: N/A
- Network: 1 x RJ45 10M/100M Base-TX Auto-adaptive Ethernet
- Video Output: N/A
Certifications
- CE-EMC: (EN 55032: 2015 + A1:2020, EN 61000-3-3: 2013 + A1: 2019, EN IEC 61000-3-2: 2019 + A1: 2021, EN 55035:) 2017 + A11:2020)
- FCC: (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety: CE LVD (EN 62368-1:2014 + A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection:
- IP66 (IEC 60529:1989 + AMD1:1999 + AMD2:2013)
- IK10 (IEC 62262:2002)
General
- Power:
- DC12V±25%
- PoE (IEEE 802.3af)
- Power Consumption: Max. 8.5W
- Power Interface: 5.5mm coaxial power plug

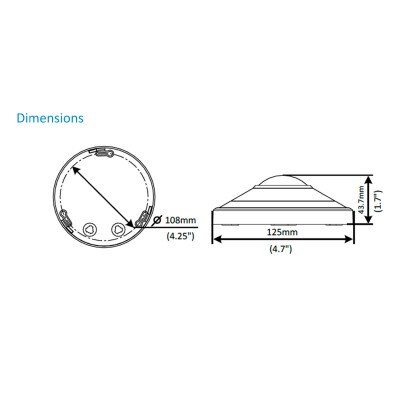

- Dimensions: Diameter: 125 x 43.7 mm (♦4.9" x 1.7")
- Weight: 0.36kg (0.79lb)
- Material: Metal + Plastic
- Working Environment: -22°F to 140°F (-30°C to 60°C)
- Working Humidity: ≤95% RH (non-condensing)
- Storage Environment: -22°F to 140°F (-30°C to 60°C)
- Storage Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Support
- Web Client Language: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
- Warranty: 3 Year
