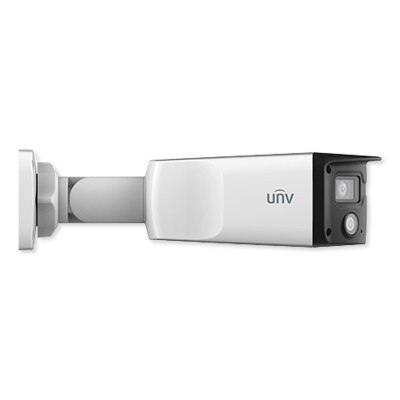

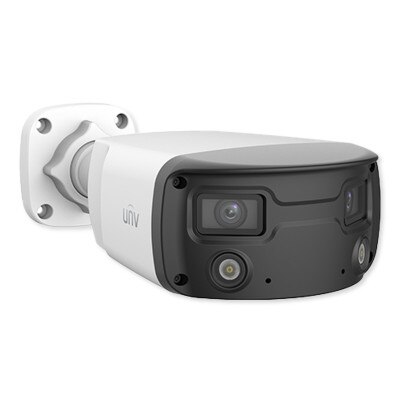

Uniview 8MP ColorHunter Omniview Series Fixed Bullet Network Camera
Product Description
The Uniview 8MP ColorHunter Omniview Series Fixed Bullet Network Camera offers high-resolution, panoramic video surveillance in full color in nearly all lighting conditions. This advanced security camera utilizes dual lenses and an 8MP (5120 x 1440p @20fps) resolution CMOS sensor that splice their video inputs together to create a single 180° wide view video feed. This wide view allows for monitoring of long hallways, large rooms and garages, and wide outdoor areas. ColorHunter technology enables the camera to deliver vibrant color images even in low-light environments down to 0.0005 lux, ensuring reliable surveillance 24/7.
The camera's built-in microphones and speaker enable communication with monitored subjects. Additionally, this network camera supports intelligent analytic software that enhances the camera's surveillance capabilities; users can program the camera to send alerts and updates to connected security systems when preprogrammed events are detected, such as simple motion detection during a set time period, or subjects crossing a digital line or entering/exiting a digitally marked area. The fixed bullet design allows for easy installation and optimal positioning, making it suitable for a wide range of applications.
- IP67 bullet camera captures UHD footage in 8MP (5120 x 1440p @20fps) resolution

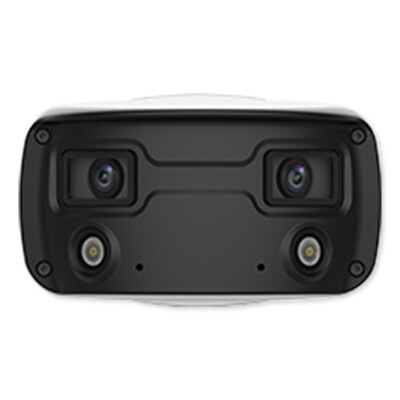

- Double lens splicing technology provides 180° horizontal viewing angle
- ColorHunter technology provides full-color video in low-light conditions
- Intelligent analytics enhance security monitoring capabilities with real time alerts
- Supports H.265 video compression for efficient storage and bandwidth usage
- IP67-rated for weatherproof performance and IK10 rated for durability against vandalism
- Powered via 12VDC power supply or PoE connection
- Fixed bullet design allows for easy installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 8MP ColorHunter Omniview Series Fixed Bullet Network Camera is ideal for surveillance installations where wide-angle viewing is necessary. It can be used to monitor the exterior of your home, or your businesses' entrances, parking lot, and other critical areas, ensuring the safety and security of your property. Its ColorHunter technology ensures that you can identify people, vehicles, and other important details even in low-light conditions. The camera's intelligent analytics, such as motion detection and intrusion alarms, provide additional layers of security, making it a valuable tool for proactive surveillance.
In The Box:
- Camera
- Mounting Hardware
- Installation Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC2K28SE-ADF40KMC-WL-I0
Camera
- Sensor: 1/2.7"CMOS
- Minimum Illumination: Color: 0.01 lux (F2.0, AGC ON)
- Shutter: Auto/Manual, 1 to 1/100000s
- Adjustment Angle:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
- WDR: 130dB
- S/N: >52dB
Lens
- Lens: 2 x 4.0mm@F1.0
- Iris: Fixed
- Field of View:
- (H): 180° ±10°
- (V): 47.41°
- (O): 180.13° ±10°
DORI
- DORI Distance:
- Lens: 4.0 mm
- Detect: 90m (259.3ft
- Observe: 36m (118.1ft)
- Recognize: 18m (59.1ft)
- Identify: 9m (29.5fft)
Illuminator
- LED Distance: Up to 30m (98ft)
- Wavelength: 850nm
- LED On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (5120 x 1440), Max 20fps
- Sub Stream: 2560 x 720, Max 20fps
- Video Bit Rate: 128 Kbps~16Mbps
- U-Code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Double streams
- Auto Scene Match (ASM): Support （Only WDR
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart Illumination: Support
- Flip: N/A
- Dewarping: N/A
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
- Statistical Analysis: People counting, support people flow counting and crowd density monitoring
- Attribute Collection: SIP with color retrieval
Events
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication
Audio
- Audio Compression: G.711
- Audio Bitrate: 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users.
- 3 User Levels: Administrator and Common User and Operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client:
- EZStation
- EZView
- EZLive
- Web Browser:
- Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O: Input: impedance 35kΩ; amplitude 2V [p-p]
- Alarm I/O: Output: impedance 600Ω; amplitude 2V [p-p]
- Built-in Mic: Built-in two mics
- Built-in Speaker: Support
- RS485: N/A
- Wi-Fi: N/A
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
- Certifications:
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN50130)
- FCC: (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1)
- UL/CUL: (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67, IK10
General
- Power: DC 12V ±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 13W
- Power Interface: 5.5mm coaxial power plug

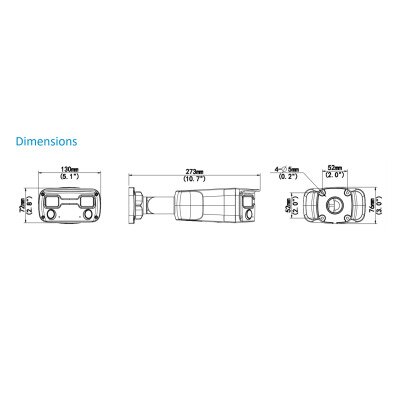

- Dimensions: 273 L x 130 W x 76mm H (10.7" x 5.1" x 3.0")
- Weight: 0.96kg (2.12lb)
- Material: Metal
- Working Environment: -22°F to 140°F (-30°C to 60°C)
- Working Humidity: ≤95% RH (non-condensing)
- Storage Environment: -22°F to 140°F (-30°C to 60°C)
- Storage Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Support
- Web Client Language: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
- Warranty: 3 Year
