  • WaterCop Lead Free Brass Ball Valve with 12VDC Industrial Actuator, Low Voltage

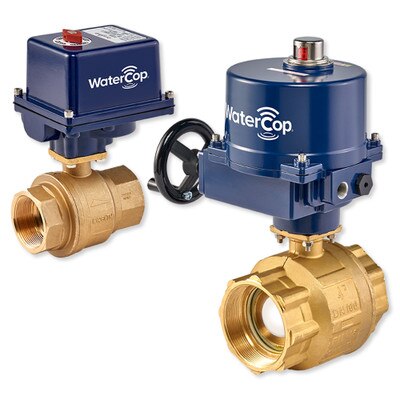

WaterCop Lead Free Brass Ball Valve with 12VDC Industrial Actuator, Low Voltage

$765.84 to $770.55
SKU: DQWCEHH2xATE25H

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

WaterCop Lead Free Brass Ball Valve with 12VDC Industrial Actuator, Low Voltage is an industrial quality direct mount actuator motor paired with a large shut-off valve. It installs on the incoming main water supply line within a home. This unit features auxiliary low voltage contacts with a modular RJ-45 interface socket for simple connection to additional WaterCop devices. Integrate with a third-party home security or home automation system using standard Cat-5 computer cabling.

  • Soft touch on/off valve controls for manual operation
  • Color-coded LED valve position indicator lights
  • 20-foot power cord with transformer for a standard outlet
  • 12 VDC power required, UL listed
  • Requires WaterCop Classic Interface (part # WCDNM, sold separately) for operation

In The Box:

  • WaterCop Lead Free Brass Ball Valve
  • WaterCop Industrial Actuator
  • Power Cable, 20ft

NOTE: Requires Z-Wave controller, gateway, or hub and internet access for remote operation and alerts.

Tech Specs

  • Part Number:
    • WCEHG27ATE25H: 1.5 inches
    • WCEHH28ATE25H: 2 inches
  • Approvals: NSF/ANSI 372 Certification
  • Max Pressure Rating: 300 PSI
  • Ambient Operating Temperature: -40 to 150 degrees F
  • Weight: 8.27 lbs
  • Warranty: 2 Year

Product Docs
