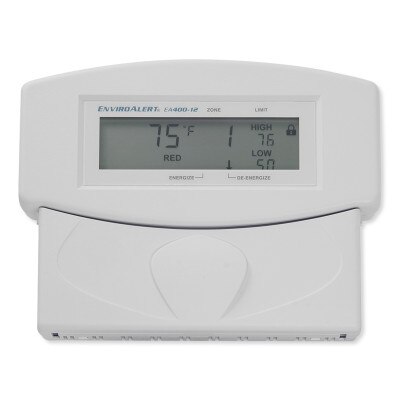

Winland EnviroAlert 4 Zones Digital Environmental Monitoring Alarm, 12VDC
Product Description
Monitoring of critical environments has never been this simple. Monitor four zones with any combination of a remote temperature, humidity or water sensing probe. If temperatures and humidity deviate from the preset limits or water forms a bridge between the contacts on the WaterBug sensor the designated relay for each zone will activate an alarm, dialer, transmitter, etc.
Features:
- Simultaneous operation of all four zones
- Defrost time delay up to 120 minutes
- Easy to read large LCD display
- Eight event alarm memory with time and date
- Auxiliary output relay for local audible alarm
- Auxiliary alarm silence feature with 10 minute timer
- Each zone has offset calibration adjustment
- Temperature & humidity Hi / Lo set points
- Output relays can be configured to be initially energized or de-energized
- Tamper proof lock setting
- Snap fit mounting base with main housing for easy access
- Plug in terminal strip connectors for easier wire termination
- Zones being monitored are displayed every few seconds
- Display F°, C°, % (Humidity) or Water Drop icon
- Zone configuration retained in memory if power is lost
Specifications:
- Dimensions: 6.0" x 4.75 x 1.25
- Weight: .60 lb
- Lo & Hi Limit Adjust Range: -58 to 299° F
- Input Voltage: 12 VDC @ < 200mA
- Number of sensor inputs: 4
- Unit Operating Range: +32 to 122° F
- Alarm Outputs: 4 – SPDT Relays (Configurable)
- Auxiliary Audible Alarm Output: 1 – SPDT Relays (Non-configurable)
- Case Material: ABS
Tech Specs
- Dimensions: 6.0" x 4.75 x 1.25
- Weight: .60 lb
- Lo & Hi Limit Adjust Range: -58 to 299° F
- Input Voltage: 12 VDC @ < 200mA
- Number of sensor inputs: 4
- Unit Operating Range: +32 to 122° F
- Alarm Outputs: 4 – SPDT Relays (Configurable)
- Auxiliary Audible Alarm Output: 1 – SPDT Relays (Non-configurable)
- Case Material: ABS
