Winland WaterBug 200 with 1 Sensor
Product Description
Winland offers three WaterBug models for dependable water detection. Ideal for basement sump pumps, drain and storage areas, computer rooms, document storage areas, warehouses and sprinkler systems. WaterBug sensors activate when a conductive bridge is formed between two contacts.
Use in conjunction with alarm panel, bell, wireless transmitter, etc. Connect as many as 6 sensor probes up to 100 feet (30.48 m) away from the console for wide area protection.
Features:

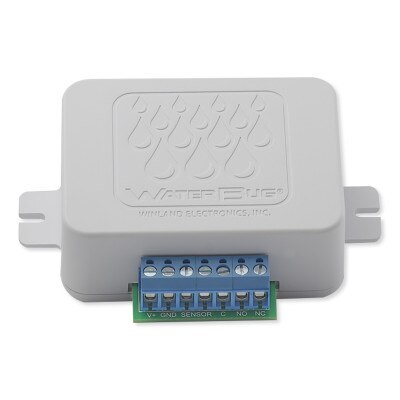

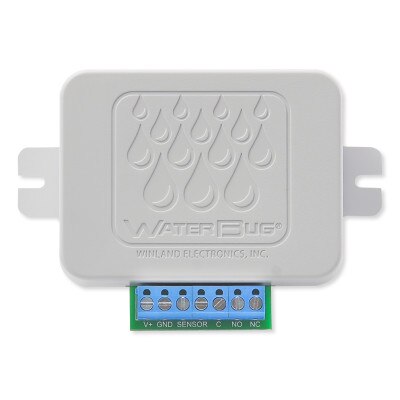

- Hardwire powered console unit

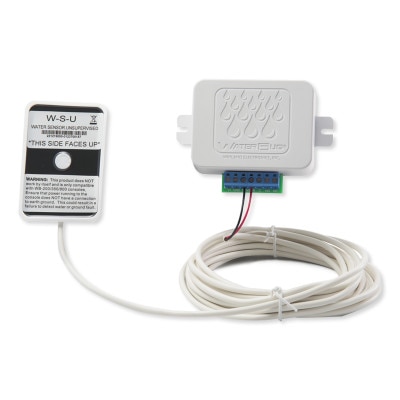

- Console includes one standard unsupervised surface sensor (W-S-U)
- Console accepts standard unsupervised under carpet sensors (W-UC-U)
- Console accepts up to 6 total sensors (W-S-U and W-UC-U)
Tech Specs
- Part Number: WB-200
- Power Requirement: 8 to 28 VDC at 35mA; 8 to 28 VAC at 100 mA
- Sensitivity: Will not alarm due to high humidity or condensation.
- Operating Temp for Console and Probe: 32 to 130° F (0 to 54° C)
- Output: Form C (N.O./N.C.); 1 Amp at 30 VDC, resistive; 1 Amp at 24 VAC, resistive
- Buzzer: Install a BZ-1 for local buzzer.
- Max Distance:
- 1-2 Probes: Max 200 feet (61 m) between console and probe
- 3-6 Probes: Max 100 feet (30.5 m) between console and probe
- Max Probes Per Console: 6
- Probe Dimensions:
- Surface: 2 x 3 x 0.88 inches (5.1 x 7.6 x 2.2 cm) [W-S-U]
- Under Carpet: 2 x 3 x 0.18 inches (5.1 x 7.6 x 0.5 cm) [W-UC-U]
- Console Dimensions: 4.1 x 2.36 x 1.18 inches (10 x 6 x 3 cm) with flanges
- Weight: 2.4 ounces (0.07 kg)
- Mounting: Two side flanges
- Color: White
- Warranty: 1 Year
