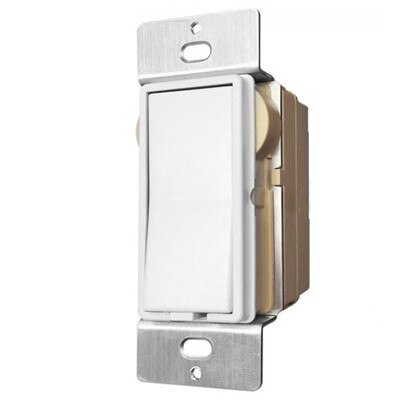

X10 PRO Inductive Dimmer Wall Switch, 500W, 120VAC
Product Description
The XPDI3 (3- or 4-way master/single pole) Incandescent and Inductive Dimmer Module is designed to control incandescent loads with a rating of between 40W and 500W and up to 5Amp inductive loads. Lamps rated below 40W may flicker or operate erratically. A Companion Switch (XPSS) is available for three and four-way operation. A removable decorative paddle is located on the Wall Dimmer Module for local ON/OFF and BRIGHTEN/DIM control. A power cutoff switch located only on the Wall Dimmer Module, directly below paddle, is provided for bulb changing.
NOTE: To use as a single pole module simply cap off the RED wire. Incandescent and Inductive Dimmer Modules can be used to control Incandescent loads up to 500W, low voltage lighting power supplies, and ceiling fan motors. The XPDI3 does require the use of a Neutral Wire at the wall box.
In The Box:
- X10 PRO Dimmer
- White and Ivory Rocker Switches
Tech Specs
- Max. Inductive Load: 5 Amps
- Incandescent Load Rating: 120VAC, 40W to 500W
- X10 Control: Responds to X10 ON/OFF, ALL LIGHTS ON/ALL OFF and DIM/BRIGHT commands
- Requires: Neutral wire
- Certifications: UL Listed
