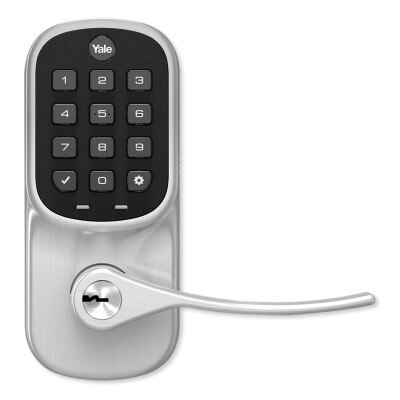

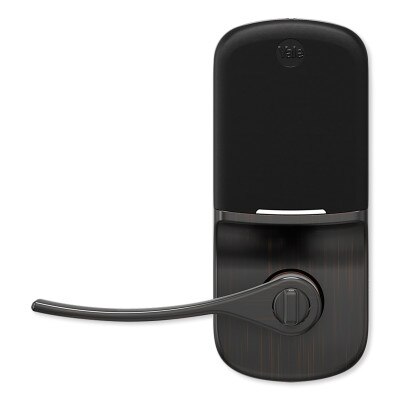

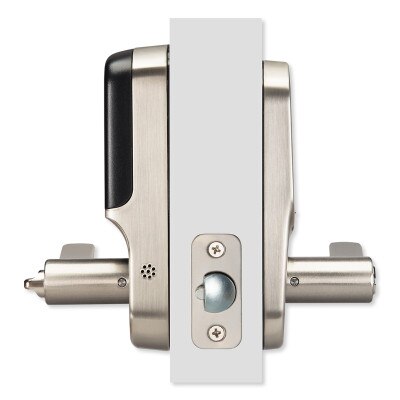

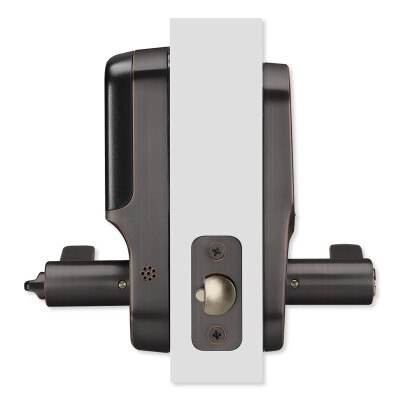

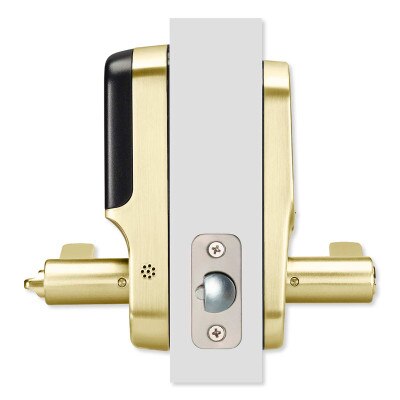

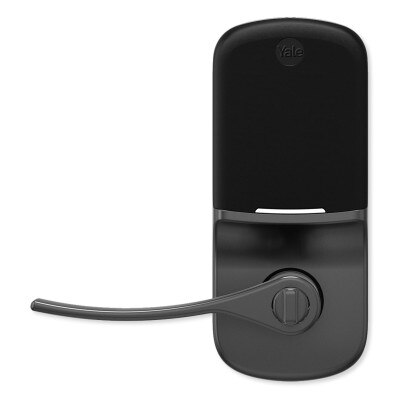

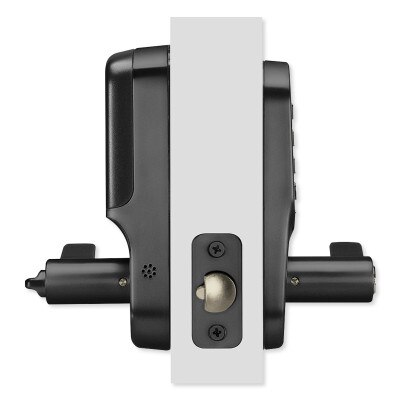

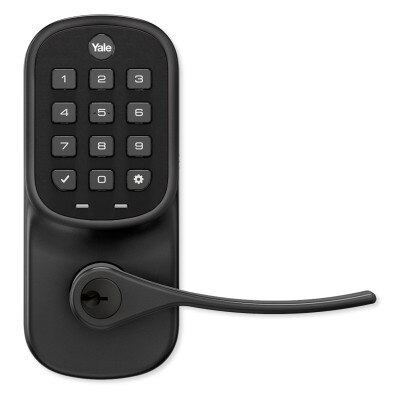

Yale Wi-Fi Assure Keypad Lever Lock

$197.31 to $289.00
SKU: YAYRL216CBAx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Yale Assure Lever Locks are perfect for securing doors throughout your home that do not have a deadbolt. Upgrade your home security with the Yale Assure Keypad Lever Lock with Wi-Fi. This smart lock features an electronic lever lock with a pushbutton keypad and a Connected by August Kit which includes a WiFi bridge and DoorSense contact sensor. This Wi-Fi connected lock allows you to lock/unlock, share access codes and see who comes and goes all using your August app. You can also lock, unlock or check current status with voice assistants including Amazon Alexa, Google Assistant or Siri. The lock features a backlit push button keypad so even when you don't have your phone, you can unlock your door without the hassle of keys. It's easy to use and installs in minutes with just a screwdriver on standard doors.

Features:

  • Auto Relock function ensures your door is always locked when the door is closed
  • Backlit Keypad wakes with a touch and has numbers that won't wear off
  • Create and share virtual ekeys and keycodes to access your home for people you trust
  • Customize auto re-lock, entry codes and tamper alarms within the lock settings
  • In case the batteries die, you can quickly power the lock with a 9V battery
  • Lock-up with one touch as you leave by touching the Yale logo on the keypad
  • Fits onto standard doors and replaces existing hardware with just a screwdriver
  • Optional integration with Autoslide AutoSwing to add automatic door opening/closing when accessing your Wi-Fi compatible Yale lock

In The Box:

  • Push Button Assure Lever Lock
  • Connected by August Module
  • August Connect Wi-Fi Bridge
  • DoorSense Sensor
  • 4 x AA Batteries
  • Mounting Hardware
  • Instruction Manual

NOTE: Compatible with single-bore hole doors only.

Tech Specs

  • Part Number:

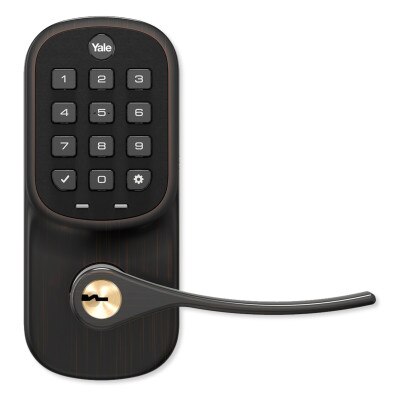

    • YRL216-CBA-0BP: Oil-Rubbed Bronze
    • YRL216-CBA-605: Polished Brass

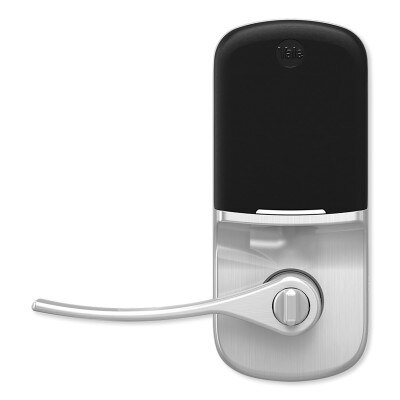

    • YRL216-CBA-619: Satin Nickel
    • YRL216-CBA-BSP: Black Suede

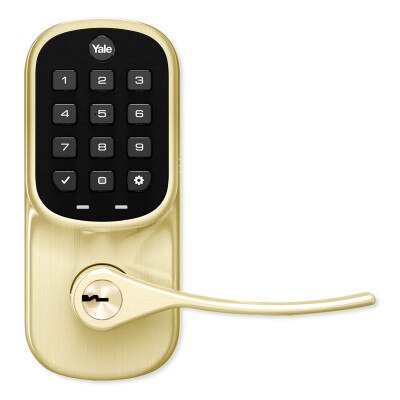

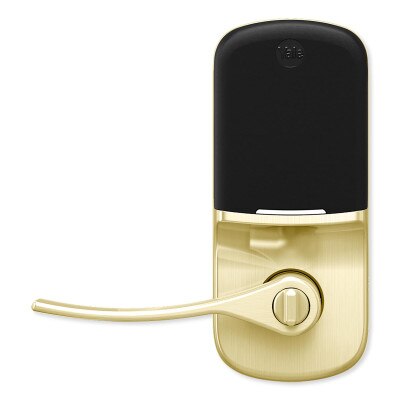

    • YRL216-CBA-P05: Lifetime Brass
  • UPC:
    • YRL216-CBA-0BP: 081023044738
    • YRL216-CBA-605: 081023044745
    • YRL216-CBA-619: 081023044721
    • YRL216-CBA-BSP: 081023090384
    • YRL216-CBA-P05: N/A
  • Keyway: KW-1; 5 Pin Brass Cylinder
  • Keys Quantity: 2
  • Handing: Reversible right or left
  • Battery: 4 x AA batteries (supplied)
  • Battery Life: approx. 1 year
  • Door Specs:
    • 2-1/8" Face Bore, 1" Edge Bore
    • 2-3/8" or 2-3/4" Backset
  • Door Thickness: 1-3/8 to 1-3/4 inches
  • Dimensions:
    • Exterior: 6-3/4 (H) x 2-9/16 (W) x 2-7/16 (D) inches
    • Interior: 6-3/8 (H) x 2-3/4 (W) x 3 (D) inches
  • Strike: 1-1/8 x 2 3/4 inches; RC (Round Corner)
  • Latch: 2-3/8" to 2-3/4" Adjustable
  • Latch Faceplate: 1" x 2-1/4" RC (Round Corner)
  • LeversetTemperature Range:
    • Outside: -22° to 140° F (-30° to 60° C)
    • Inside: 5° to 158° F (-15° to 70° C)
    • Storage: -40° to 185° F (-40° to 85° C)
  • Battery Temperature Range: 14° to 131° F (-10° to 55° C)
  • Certifications: FCC, IC, ANSI/BHMA A156.36, Grade 2
  • Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical

August Connect Wi-Fi Bridge

  • Standards: Bluetooth Specification v4.0 (Bluetooth Smart), 2.4GHz 802.11 (b/g/n) Wi-Fi
  • Power Requirement: 100-240V – 50-60Hz 0.1A – Standard North American Power Outlet
  • Dimensions: 2.36(H) x 2.36(W) x 1.54(L) inches
  • Weight: 2.9 ounces
  • Warranty: 1-Year Limited
